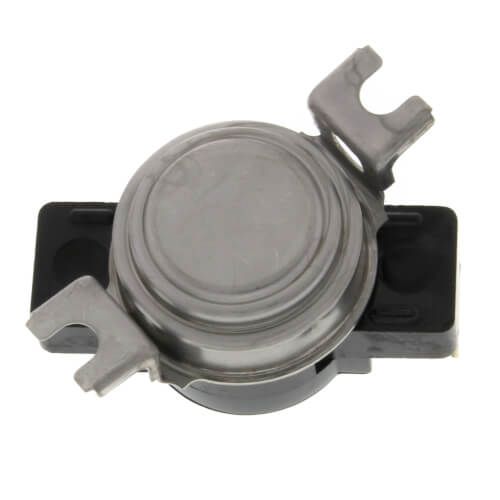

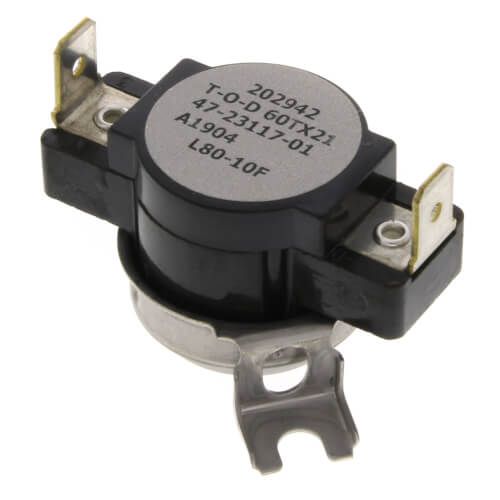

Rheem 47-23117-01 - SPST N/C, Limit Switch (80 Open, 70 Close)
Brand:
SKU
47-23117-01
Category: General Purpose
Close Temperature: (F)70
Color Code: Gray
Connections:1/4 in. QuickConnects
Contact Orientation: Normally Closed
Disc Face: Enclosed
Maximum Current Rating (A): 25
Maximum Voltage Rating (VAC): 230Mounting Surface Mount
No. of Poles: 1
Nominal Temperature Difference (F): 10
Open Temperature (F): 80
Reset Mode: Auto
Switch Type: SPSTTOD
Switch Series: 60T
Tolerance Close Temperature (F): +/-3
Tolerance Open Temperature (F): +/-3
Shipping Weight Actual (lbs.): 0.05
Shipping Weight Dimensional (lbs.): 0.13
Shipping Height (in.): 1.75
Shipping Length (in.): 5.10
Shipping Width (in.): 3.65
