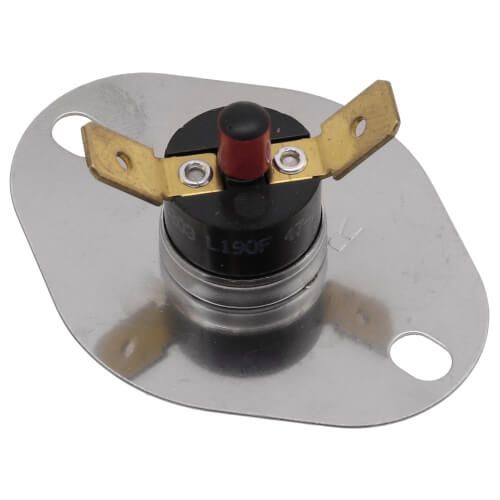

Rheem 47-22906-02 - SPST N/C M/R Limit (190 Open 45 Close)
Brand:
SKU
47-22906-02
Close Temperature (F): 45
Connections: 1/4 in. Quick Connects
Contact Orientation: Normally Closed
Disc Face: Enclosed
Maximum Current Rating (A): 15/10
Maximum Voltage Rating (VAC): 120/230
Minimum Manual Reset Temperature (F): 125
Mounting: Surface Mount - Flanged
No. of Poles: 1
Nominal Temperature Difference (F): 65
Open Temperature (F): 190
Reset Mode: Manual
Switch Type: SPST
TOD Switch Series: 36T
Tolerance Open Temperature (F): +/-10
