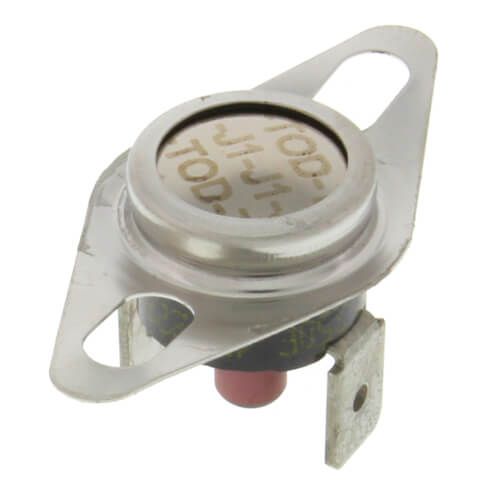

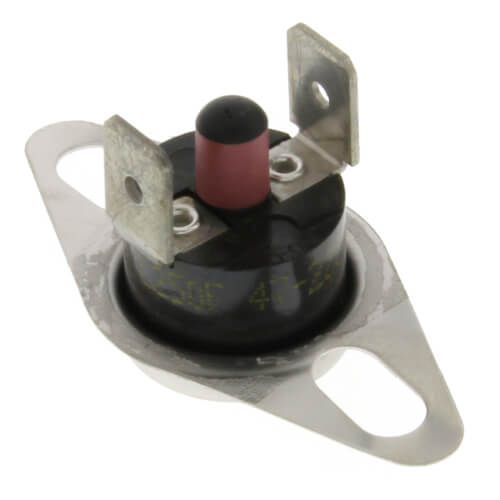

Rheem 47-22861-03 - Limit Switch, L250F
Brand:
SKU
47-22861-03
Category: General Purpose
Close Temperature (F): (-31 Auto)
Connections: 1/4 in. Quick Connects
Contact Orientation: Normally Closed
Disc Face: Exposed
Maximum Current Rating (A): 15 / 10
Maximum Voltage Rating (VAC): 120 / 230
Minimum Manual Reset Temperature (F): 130
Mounting Insertion Depth - Maximum (in.): 3/16
Mounting :Flanged airstream
No. of Poles: 1
Open Temperature (F): 250
Reset Mode: Manual
Switch Type: SPST
TOD Switch Series: 36T
Tolerance Open Temperature (F): +/-12
Shipping Weight Actual (lbs.): 0.01
Shipping Weight Dimensional (lbs.): 0.07
Shipping Height (in.): 1
Shipping Length (in.): 4.80
Shipping Width (in.): 3.75
