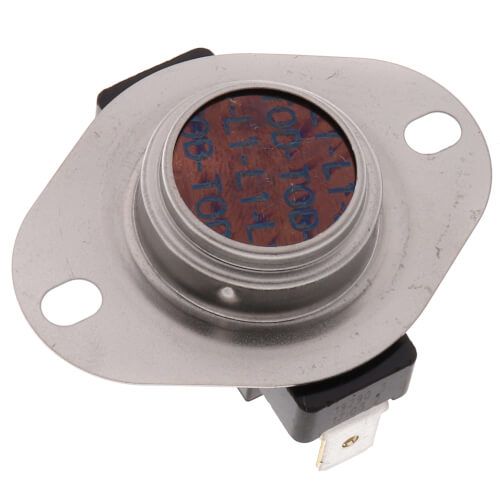

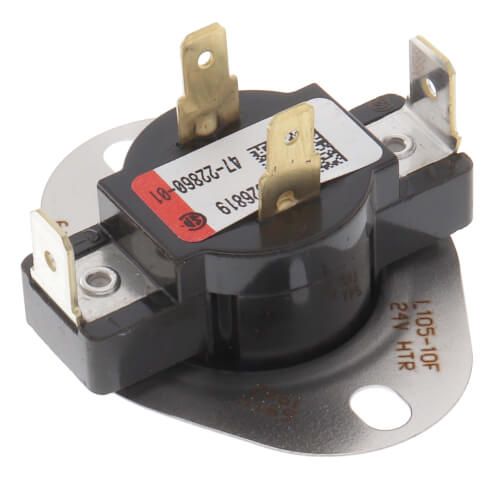

Rheem 47-22860-01 - SPST N/C Limit Switch, L105-10F
Brand:
SKU
47-22860-01
Category: General Purpose
Close Temperature (F): 95
Color Code: Red
Connections: 1/4 in. Quick Connects (outside) / 3/16 in. Quick Connects (inside)
Contact Orientation: Normally Closed
Disc Face: Exposed
Heater Wattage (W): 1.50
Maximum Current Rating (A): 25
Maximum Voltage Rating (VAC): 230
Mounting Insertion Depth - Maximum (in.): 3/8
Mounting: Flanged airstream
No. of Poles: 1
Nominal Temperature Difference (F): 10
Open Temperature (F): 105
Reset Mode: Auto
Switch Type: SPST
TOD Switch Series: 69T
Tolerance Close Temperature (F): +10/-0
Tolerance Open Temperature (F): +10/-0
Shipping Weight Actual (lbs.): 0.04
Shipping Weight Dimensional (lbs.): 0.08
Shipping Height (in.): 1.35
Shipping Length (in.): 3.80
Shipping Width (in.): 3.75
