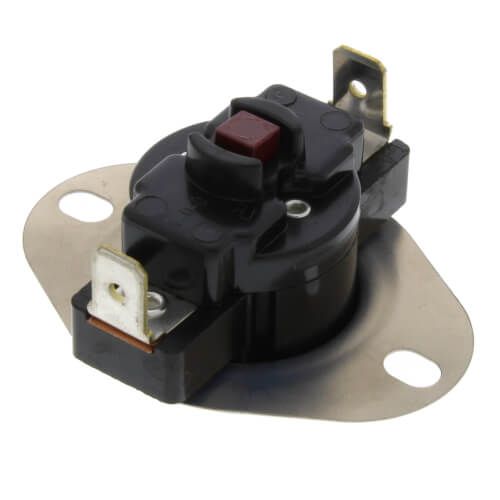

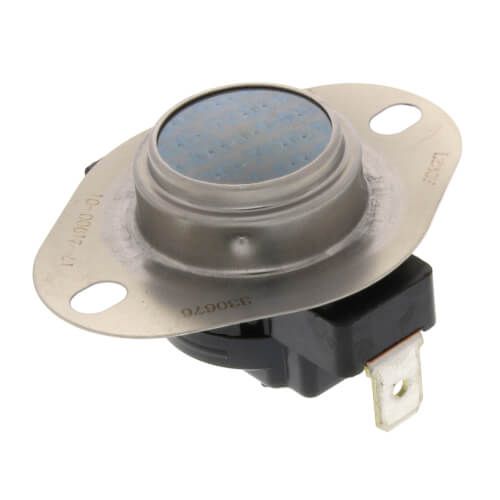

Rheem 47-21900-01 - SPST Normally Closed Limit Switch w/ Manual Reset (230F)
Brand:
SKU
47-21900-01
Category: General Purpose
Close Temperature (F): (-31 Auto)
Connections: 1/4 in. Quick Connects
Contact Orientation: Normally Closed
Disc Face: Exposed
Maximum Current Rating (A): 25
Maximum Voltage Rating (VAC): 230
Mounting Insertion Depth - Maximum (in.): 3/8
Mounting: Flanged airstream
No. of Poles: 1
Open Temperature (F): 230
Reset Mode: Manual
Switch Type: SPST
TOD Switch Series: 60T
Tolerance Open Temperature (F): +/-7
