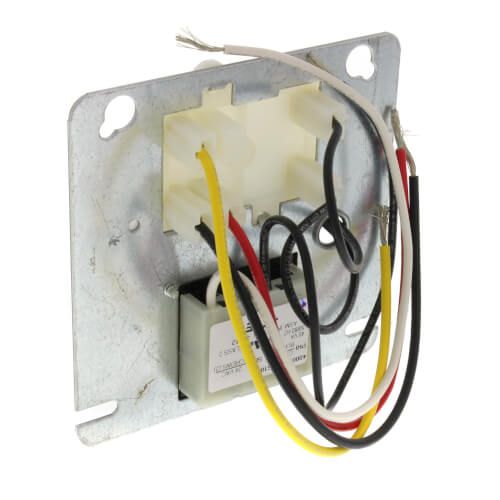

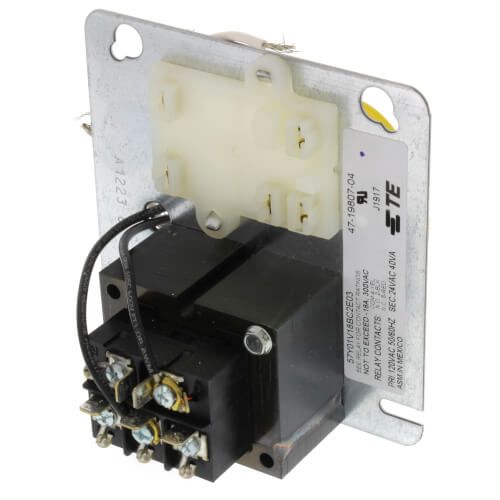

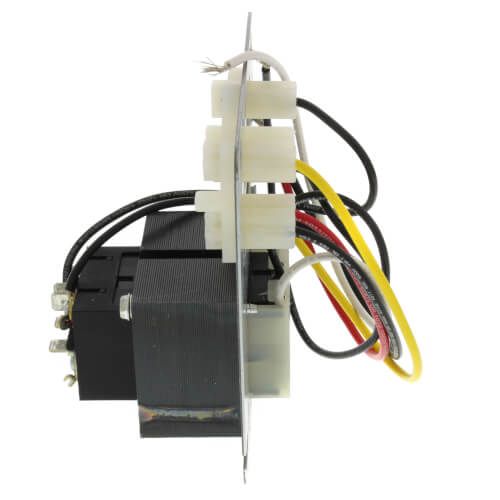

Rheem 47-19807-04 - Transformer Fan Center 90-113
Brand:
SKU
47-19807-04
Mounting Plate Dimensions (in.): 4-1/4 x 4-1/4
Relay Coil Voltage (V): 24
Relay Contact Configuration: SPDT
Relay Included: No
Replacement Relay Part Number: 42-25104-06
Terminals: W, G, Y, R, C
Transformer Capacity (VA): 40
Transformer Energy Limiting: Class 2
Transformer Frequency (Hz):50,60
Transformer Primary Voltage (V): 120
Transformer Secondary Voltage (V): 24
Shipping Weight Actual (lbs.): 1.82
Shipping Weight Dimensional (lbs.): 1.82
Shipping Height (in.): 4.45
Shipping Length (in.): 4.80
Shipping Width (in.): 4.45
