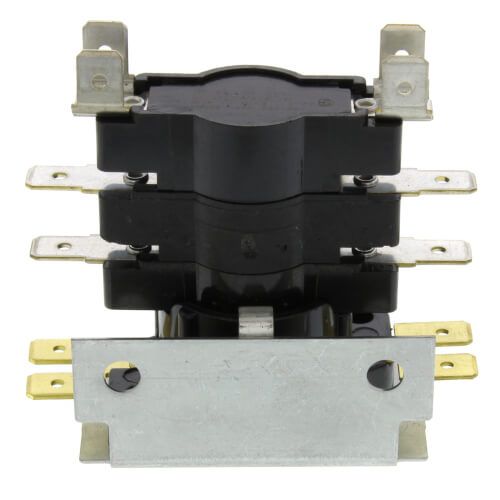

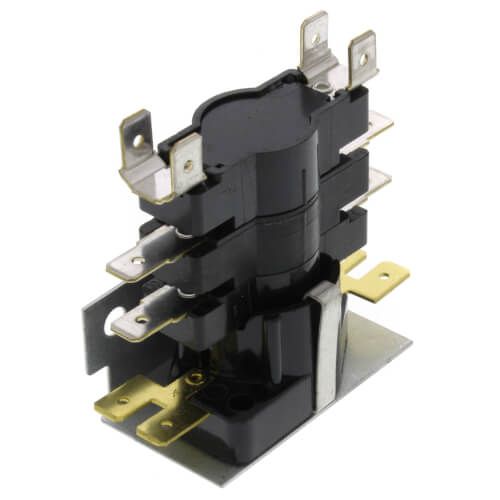

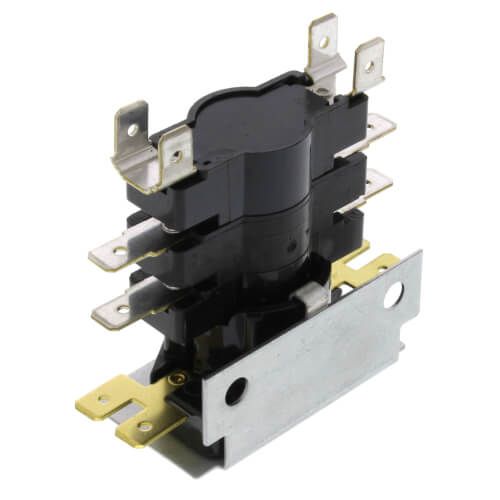

Rheem 42-23116-09 - Sequencing Relay - 3-Pole, TPST - NO, Heater 24 VAC / 0.2A Steady State / 0.55A Maximum
Brand:
SKU
42-23116-09
Mounting: Angle Bracket w/Two Mounting Holes
Heater Wattage/ Power Consumption: 24 VAC / 0.2A steady state / 0.55A maximum
Heater Voltage (V): 24
Contact Configuration: TPST - NO
No. of Poles: 3
On Timing - Pole 1 (seconds): 10-30
On Timing - Pole 2 (seconds): 10-30
On Timing - Pole 3 (seconds): 10-30
Off Timing - Pole 1 (seconds): 30-60
Off Timing - Pole 2 (seconds): 30-60
Off Timing - Pole 3 (seconds): 30-60
Connections: 1/4" Quick Connects
Motor FLA at 120V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
Motor LRA at 120V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
Pilot Duty Rating at 120V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
Resistive Rating at 120V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
Motor FLA at 230V (A): Pole 1: 7 Pole 2: 7 Pole 3: 7
Motor LRA at 230V (A): Pole 1: 42 Pole 2: 42 Pole 3: 42
Pilot Duty Rating at 230V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
Resistive Rating at 230V (A): Pole 1: 25 Pole 2: 25 Pole 3: 25
Motor FLA at 460V (A): Pole 1: 3 Pole 2: 3 Pole 3: 3
Motor LRA at 460V (A): Pole 1: 18 Pole 2: 18 Pole 3: 18
Pilot Duty Rating at 460V (VA): Pole 1: 125 Pole 2: 125 Pole 3: 125
Resistive Rating at 460V (A): Pole 1: 12.5 Pole 2: 12.5 Pole 3: 12.5
