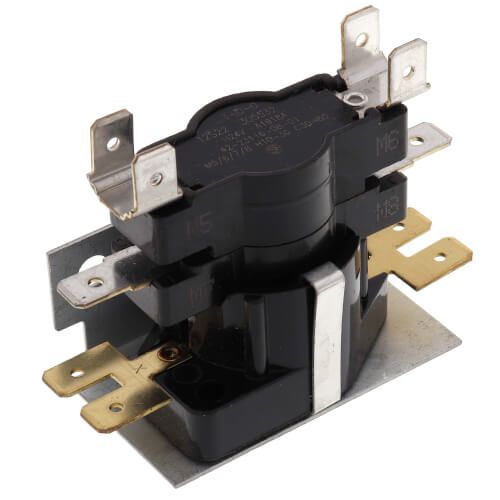

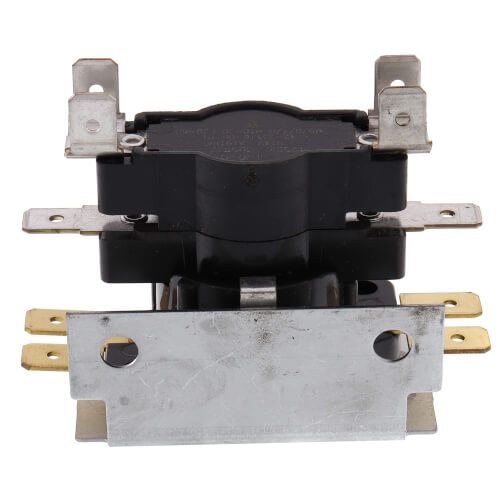

Rheem 42-23116-08 - DPST N/O Sequencing Relay (24V)
Brand:
SKU
42-23116-08
Relay Sequencer
Voltage Rating 120/230/460 Volt
Timing Mode On/Off-Delay
Contact Configuration DPST, NO
Timing Range 10 to 30 Second (On), 30 to 60 Second (Off)
Used On Air Handler
Number of Pole 2
Heater Voltage Rating 24 Volt
Overall Dimension 2 Inch Length x 1.15 Inch Width
Includes Angle Bracket, (2) Mounting Hole
