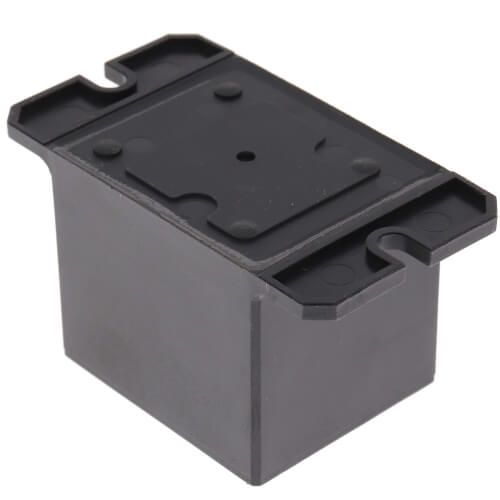

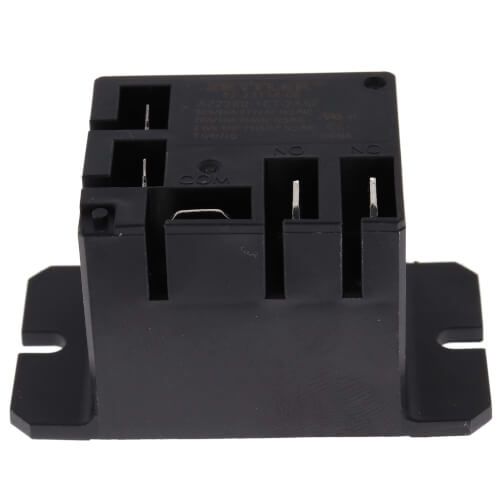

Rheem 42-23114-06 - SPDT NO/NC Relay (24V)
Brand:
SKU
42-23114-06
Control Relay
Type Small Sealed Case, AC Operated
Coil Voltage 24 Volt AC at 50/60 Hertz
Contact Voltage Rating 120/230 Volt
Contact Current Rating 10/20 Amp at 277 Volt (Full Load), 33/60 Amp at 230/277 Volt (Locked Rotor)
Contact Configuration SPDT, NO/NC
Terminal Type 3/16 Inch Quick Connect (Coil), 1/4 Inch Quick Connect (Contact)
Power Rating 1 or 1/4 HP at 120 Volt, 1/2 or 2 HP at 230 Volt
Rheem 42-23114-06 - SPDT NO/NC Relay (24V)
Control Relay
Type Small Sealed Case, AC Operated
Coil Voltage 24 Volt AC at 50/60 Hertz
Contact Voltage Rating 120/230 Volt
Contact Current Rating 10/20 Amp at 277 Volt (Full Load), 33/60 Amp at 230/277 Volt (Locked Rotor)
Contact Configuration SPDT, NO/NC
Terminal Type 3/16 Inch Quick Connect (Coil), 1/4 Inch Quick Connect (Contact)
Power Rating 1 or 1/4 HP at 120 Volt, 1/2 or 2 HP at 230 Volt
