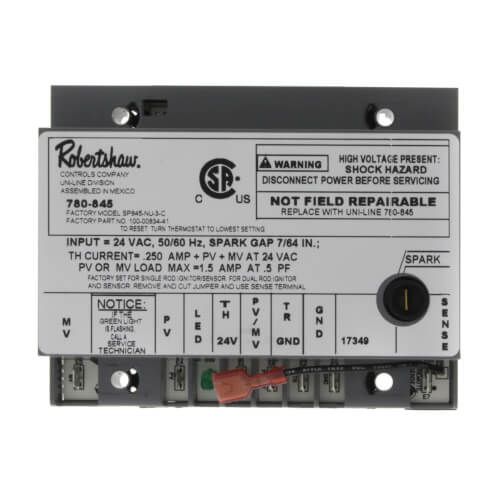

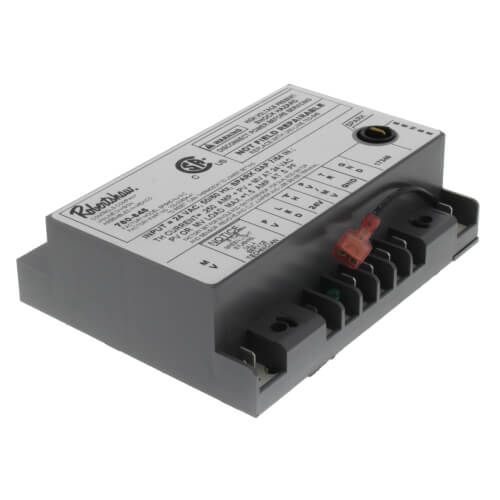

Robertshaw 780-845 - Universal Intermittent Pilot Lockout Ignition Module
Brand:
SKU
780-845
Ignition Control Module
Type Intermittent Pilot, Lockout, Universal
Ignition Source Intermittent Pilot
Ignition Trial Time 3 to 15 Second Spark
Prepurge Time 6 Minute
Flame Failure Response Time 2 Second
Valve Rating 24 Volt AC at 50/60 Hertz
Power Rating 24 Volt AC at 20 Volt amp
Temperature Rating -40 to 175 Deg F
Application Local Sense, Remote Sense, Heating
Approval CSA (Canada and US)
Input Voltage 24 Volt AC at 50/60 Hertz
Current Rating 1.5 Amp
Flame Sense Current 0.7 Milliamp DC at 25 Deg C
Safety Lockout Timing 90 Second
Robertshaw 780-845 - Universal Intermittent Pilot Lockout Ignition Module
Ignition Control Module
Type Intermittent Pilot, Lockout, Universal
Ignition Source Intermittent Pilot
Ignition Trial Time 3 to 15 Second Spark
Prepurge Time 6 Minute
Flame Failure Response Time 2 Second
Valve Rating 24 Volt AC at 50/60 Hertz
Power Rating 24 Volt AC at 20 Volt amp
Temperature Rating -40 to 175 Deg F
Application Local Sense, Remote Sense, Heating
Approval CSA (Canada and US)
Input Voltage 24 Volt AC at 50/60 Hertz
Current Rating 1.5 Amp
Flame Sense Current 0.7 Milliamp DC at 25 Deg C
Safety Lockout Timing 90 Second
