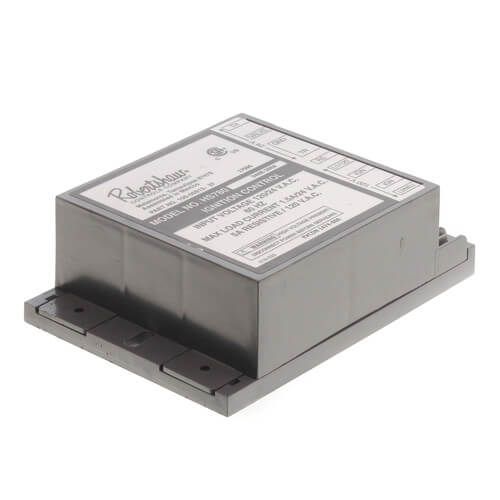

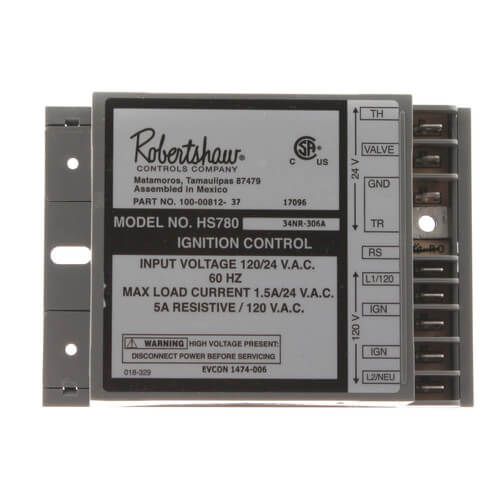

Robertshaw 780-787 - Hot Surface Ignition Module w/ 6 Sec. Valve Trial
Brand:
SKU
780-787
Ignition Control Module
Type Hot Surface
Flame Sense Type Remote
Ignition Source Hot Surface
Ignition Sequence 3
Ignition Trial Time 6 Second
Prepurge Time 34 Second
Valve Rating 1.5 Amp at 24 Volt AC
Power Rating 24 Volt AC at 50/60 Hertz, 1.5 Amp
Temperature Rating -40 to 176 Deg F
Application Local Sense, Remote Sense, Heating
Input Voltage 24 Volt AC at 50/60 Hertz
Thermostat Anticipator Setting 0.1 Amp
Maximum Igniter Current 5 Amp
