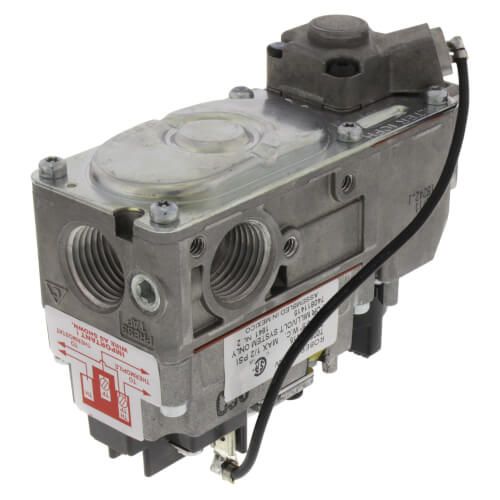

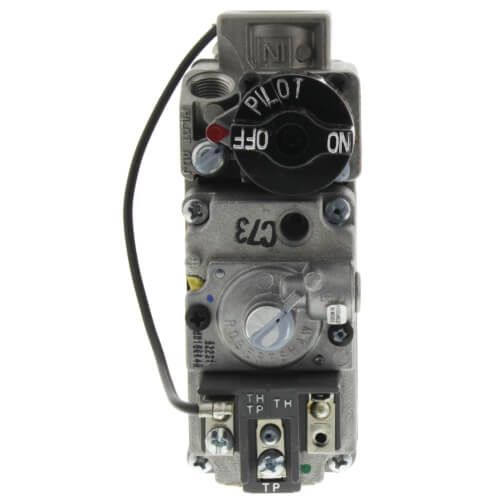

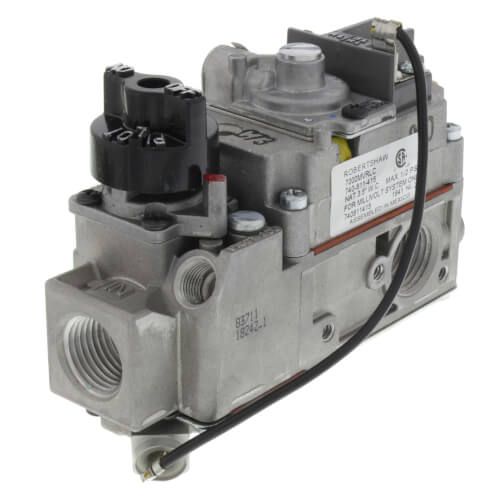

Robertshaw 710-502 - 1/2" X 1/2" Low Profile Millivolt Combo Gas Valve
Brand:
SKU
710-502
Gas Valve
Type Low Capacity
Nominal Size 1/2 Inch
End Connection Female Threaded x Female Threaded
Actuator Dimensions 4-21/32 Inch Length x 1-29/32 Inch Width x 3-13/16 Inch Height
Input Supply Rating 250 to 750 Millivolt
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet Filtered Screen, 3-Position Outlet
Application Heating, Space Heater
Applicable Standard CSA (Canada and US)
RoHS Compliant
Pilot Outlet Size 1/4 Inch Tubing
Reducer Bushing Size (2) 1/2 Inch x 3/8 Inch Threaded
Capacity 700000 BTU/Hour (Natural Gas)
Pressure Regulating Setting 3.5 Inch WC (Natural Gas)
Robertshaw 710-502 - 1/2" X 1/2" Low Profile Millivolt Combo Gas Valve
Gas Valve
Type Low Capacity
Nominal Size 1/2 Inch
End Connection Female Threaded x Female Threaded
Actuator Dimensions 4-21/32 Inch Length x 1-29/32 Inch Width x 3-13/16 Inch Height
Input Supply Rating 250 to 750 Millivolt
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet Filtered Screen, 3-Position Outlet
Application Heating, Space Heater
Applicable Standard CSA (Canada and US)
RoHS Compliant
Pilot Outlet Size 1/4 Inch Tubing
Reducer Bushing Size (2) 1/2 Inch x 3/8 Inch Threaded
Capacity 700000 BTU/Hour (Natural Gas)
Pressure Regulating Setting 3.5 Inch WC (Natural Gas)
