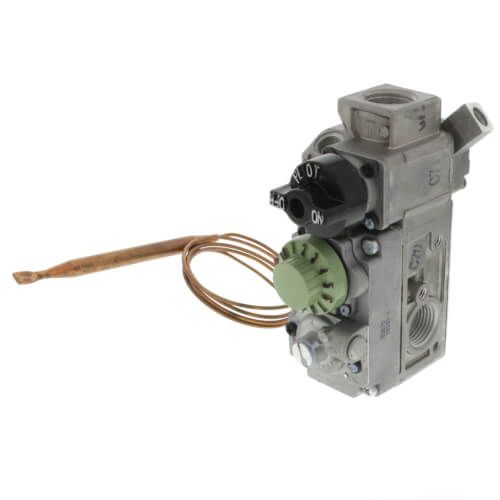

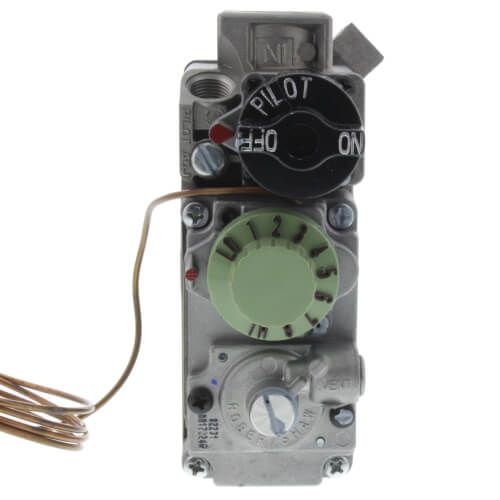

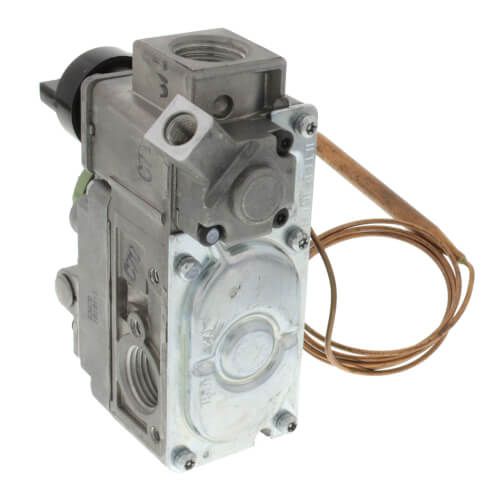

Robertshaw 710-205 - 1/2" X 1/2" Low Profile Combo Gas Valve (70,000 BTU)
Brand:
SKU
710-205
Gas Valve
Type Snap Action, Low Capacity
Nominal Size 1/2 Inch
End Connection Female Threaded x Female Threaded
Actuator Type Hydraulic
Actuator Dimensions 4-21/32 Inch Length x 1-29/32 Inch Width x 3-13/16 Inch Height
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet Filtered Screen, 3-Position Outlet
Application Heating, Wall Furnace
Applicable Standard CSA (Canada and US)
RoHS Compliant
Pilot Outlet Size 1/4 Inch Tubing
Reducer Bushing Size (2) 1/2 Inch x 3/8 Inch Threaded
Capillary Length 36 Inch
Capacity 700000 BTU/Hour (Natural Gas), 112000 BTU/Hour (Liquid Propane Gas)
Pressure Regulating Setting 3.5 Inch WC (Natural Gas)
