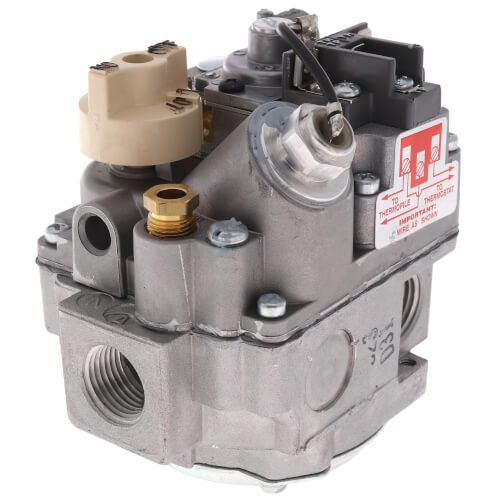

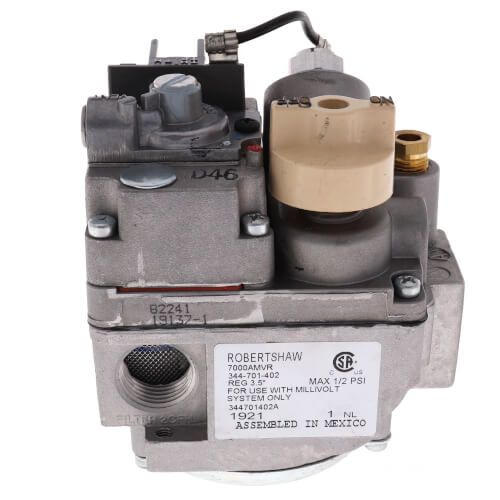

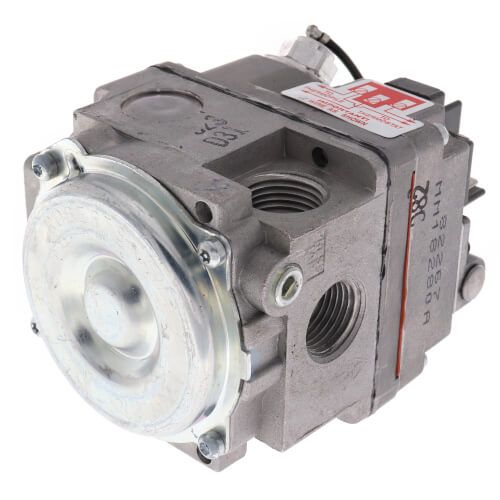

Robertshaw 700-502 - 1/2" X 1/2" Millivolt Combo Gas Valve (100,000)
Brand:
SKU
700-502
Gas Valve
Nominal Size 1/2 Inch
End Connection Female Threaded x Female Threaded
Actuator Type Thermostat
Input Supply Rating 250 to 750 Millivolt
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet Filtered Screen
Application Heating, Furnaces to Swimming Pool
Applicable Standard UL, CSA (Canada and US)
RoHS Compliant
Terminal Type Screw/Spade
Side Outlet Size 1/2 Inch
Pilot Outlet Size 1/4 Inch Tubing
Reducer Bushing 2 Inch Threaded
Capacity 100000 BTU/Hour
Pressure Regulator Setting 3.5 Inch WC (Natural Gas)
