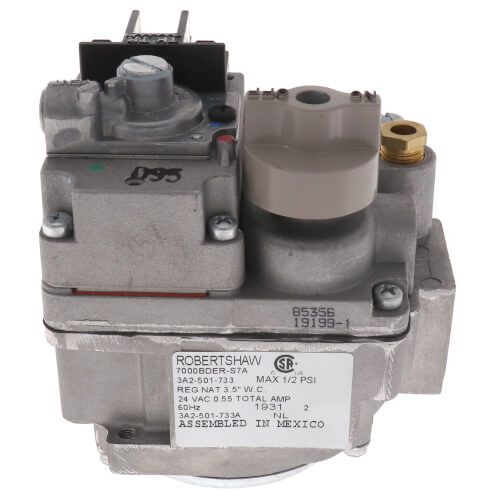

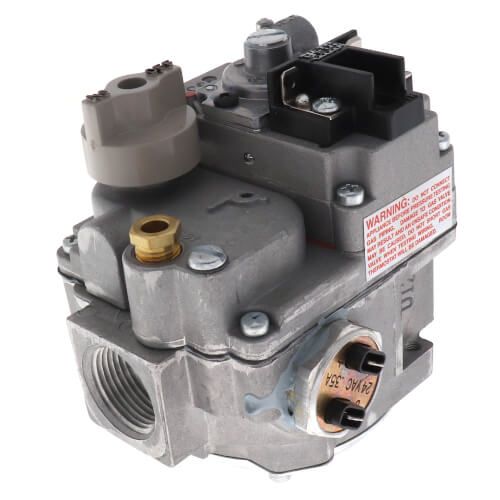

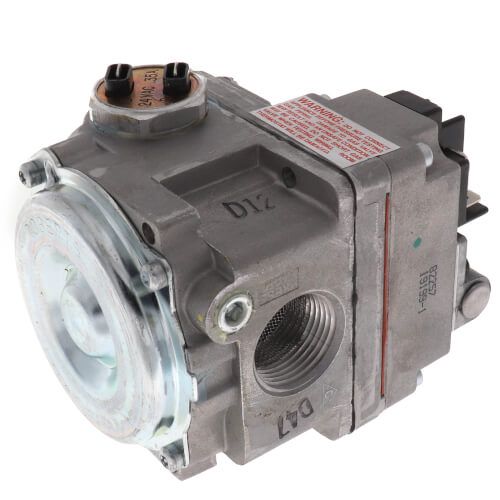

Robertshaw 700-056 - 3/4" x 3/4" Slow Opening Natural Gas Valve (350,000 BTU)
Brand:
SKU
700-056
Gas Valve
Type Hot Surface and Direct Spark, Intermittent Pilot
Nominal Size 3/4 Inch
End Connection Female Threaded x Female Threaded
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet Filtered Screen
Application Residential and Commercial, Central Heating Unit, Wall Heater, Boiler and Mobile Home Furnace, Pilot Intermittent Ignition, Hot Surface and Direct Spark
Applicable Standard UL, CSA (Canada and US)
RoHS Compliant
Capacity 350000 BTU/Hour
Pressure Regulating Setting 3.5 Inch WC (Natural Gas)
Robertshaw 700-056 - 3/4" x 3/4" Slow Opening Natural Gas Valve (350,000 BTU)
Gas Valve
Type Hot Surface and Direct Spark, Intermittent Pilot
Nominal Size 3/4 Inch
End Connection Female Threaded x Female Threaded
Input Supply Rating 24 Volt AC at 60 Hertz
Temperature Rating -40 to 175 Deg F
Pressure Rating 1/2 PSI
Inclusions/Features Inlet Filtered Screen
Application Residential and Commercial, Central Heating Unit, Wall Heater, Boiler and Mobile Home Furnace, Pilot Intermittent Ignition, Hot Surface and Direct Spark
Applicable Standard UL, CSA (Canada and US)
RoHS Compliant
Capacity 350000 BTU/Hour
Pressure Regulating Setting 3.5 Inch WC (Natural Gas)
