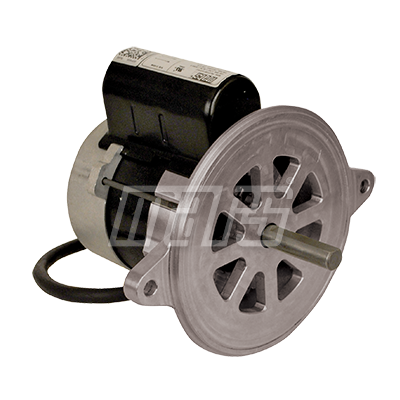

Mars 30701 - 1/7HP 115V 3450 RPM
Brand:
SKU
30701
No. of Poles: 2
Motor Type: PSC
Enclosure: Semi Enclosed
HP (Max.): 1/7
Voltage: 115
Mounting: Two bolt direct mounting
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 3450
Phase: Single
Standards: cULus
FLA: 1.5
Bearing: Ball
Lead Length (in.): 14
Thermal Protection: Auto
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 1.75
Service Factor: 1.0
Duty: Continuous
Brand: MARS
Weight: 8.0500 lbs
Harmonized Tariff Code: 8501404040
