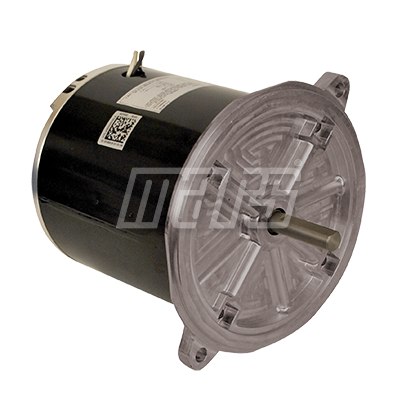

Mars 30600 - 1/8HP 115V 1725 RPM
Brand:
SKU
30600
No. of Poles: 4
Motor Type: Split Phase
Enclosure: TENV
HP (Max.): 1/8
Voltage: 115
Mounting: Two bolt direct mounting
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1725
NEMA Frame Size: 48N
Phase: Single
Standards: cULus
FLA: 2.7
Bearing: Ball
Lead Length (in.): 20
Thermal Protection: Manual Reset
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 1.75
Service Factor: 1.0
Duty: Continuous
Brand: MARS
Weight: 11.9500 lbs
Harmonized Tariff Code: 8501404040
