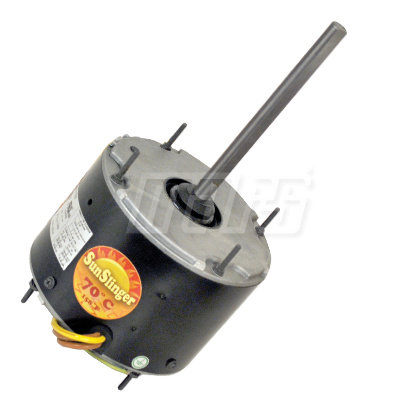

Mars 20842 - 3/4HP 1075RPM 460V CF MTR
Brand:
SKU
20842
No. of Poles: 8
Motor Type: PSC
Enclosure: TEAO
HP (Max.): 3/4
Voltage: 460
Mounting: Thru Bolt/All Angle
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 2.0
Bearing: Ball
Lead Length (in.): 36
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: F
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 6.5
Capacitor Rating: 10/440
Service Factor: 1.0
Duty: Continuous
