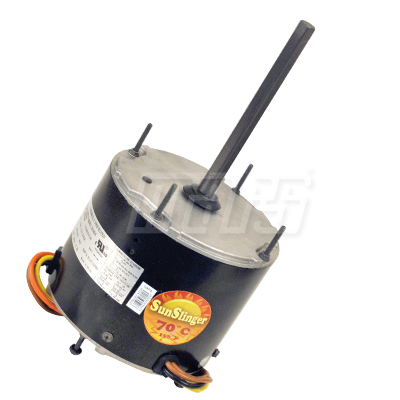

Mars 20731 - 3/4HP 208-230V 1075 70C CF MTR
Brand:
SKU
20731
No. of Poles: 6
Motor Type: PSC
Enclosure: TEAO
HP (Max.): 3/4
Voltage: 208-230
Mounting: Belly Band, Extended Clampbolts
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 5.2
Bearing: Ball
Lead Length (in.): 36
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 6.5
Capacitor Rating: 10/370
Service Factor: 1.0
Duty: Continuous
