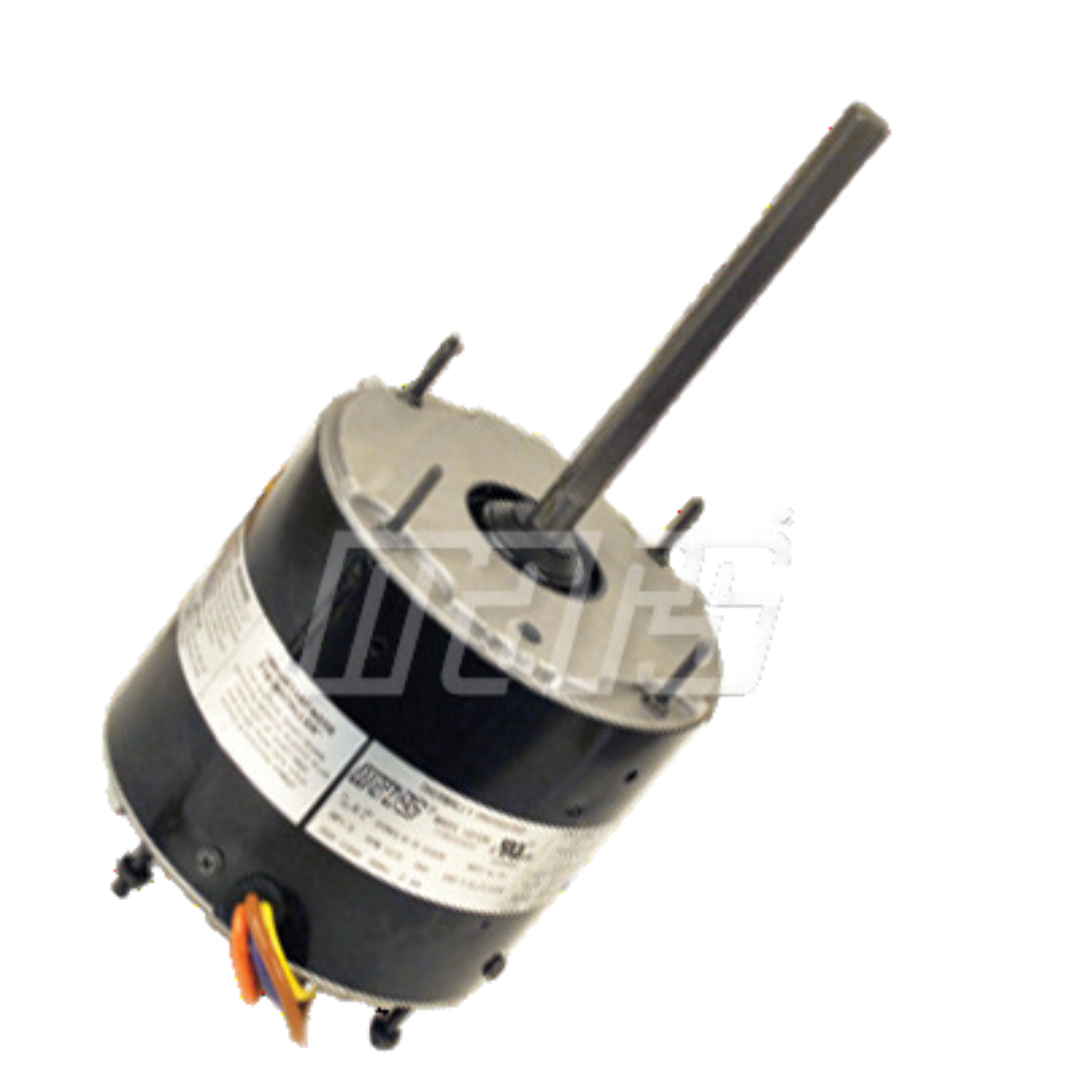

Mars 20468 - 1/5-1/2 MULTI HP 70C CF MTR
Brand:
SKU
20468
No. of Poles: 6
Motor Type: PSC
Enclosure: TEAO
HP (Max.): 1/2
Voltage: 208-230
Mounting: Belly Band, Extended Clampbolts
Speeds: 2
Hz: 60
Rotation: REV
Multi-Rated HP: 1/5-1/2
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 3.6
Bearing: Ball
Lead Length (in.): 41
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 5
Capacitor Rating: 10/12.5/370
Service Factor: 1.0
Duty: Continuous
