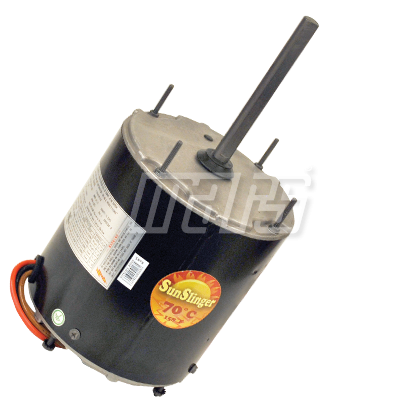

Mars 20457 - 1/8-1/15HP 208/230V 825 CF MTR
Brand:
SKU
20457
No. of Poles: 6
Motor Type: PSC
Enclosure: TEAO
HP (Max.): 1/8
Voltage: 208-230
Mounting: Thru Bolt/All Angle
Speeds: 1
Hz: 60
Rotation: REV
Multi-Rated HP: 1/8, 1/10, 1/12, 1/15
RPM Range: 825
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 0.75
Bearing: Ball
Lead Length (in.): 36
Thermal Protection: Auto
Ambient Deg C: 70
Ins. Class: F
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 6.5
Capacitor Rating: 7.5/370
Service Factor: 1.0
Duty: Continuous
