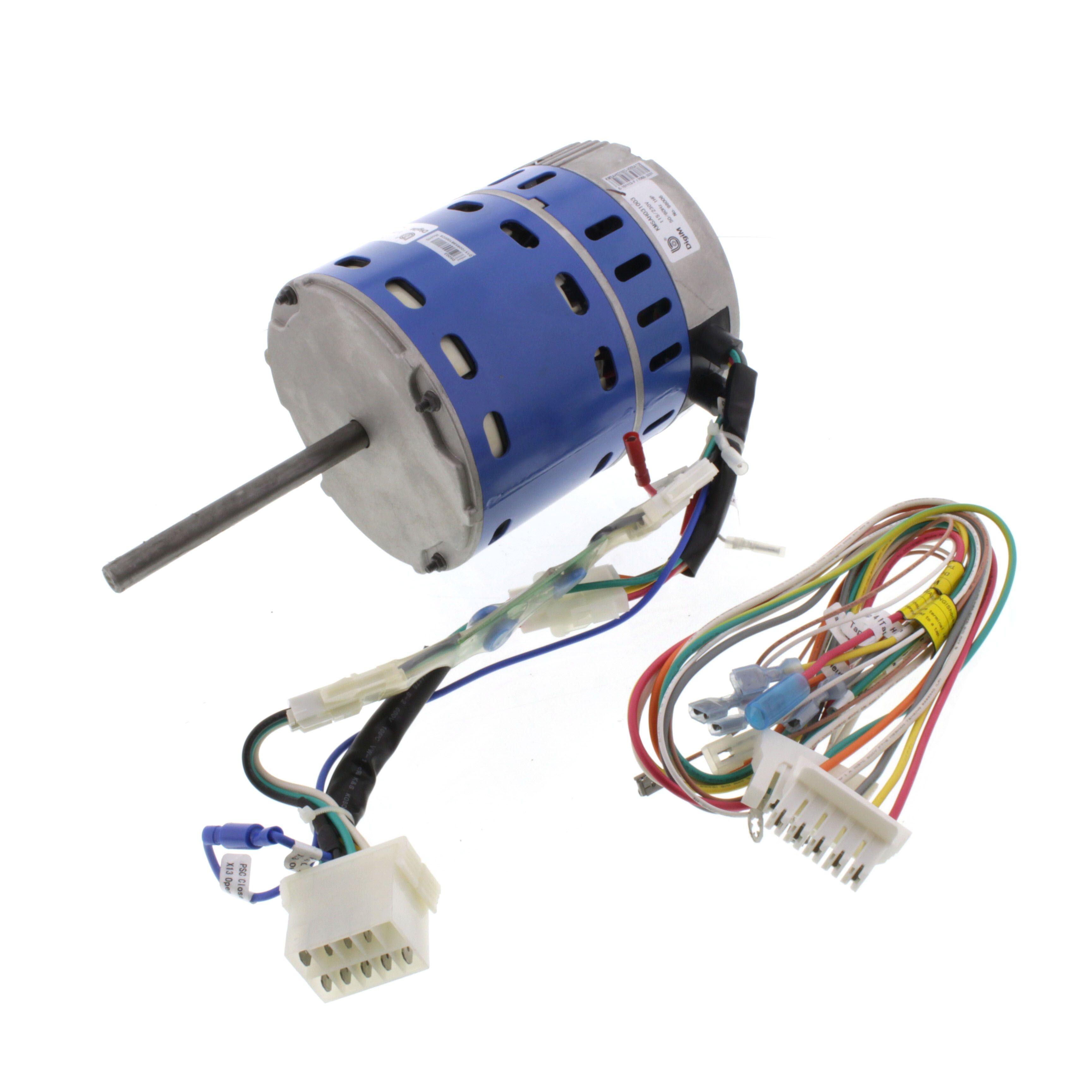

Mars 10861 - AZURE ECM 1/2 - 1HP
Brand:
SKU
10861
Motor Type: ECM
Enclosure: OAO
HP (Max.): 1
Voltage: 120/240
Mounting: Belly Band
Speeds: 5
Hz: 60/50
Rotation: REV+FWD
Multi-Rated HP: 1/2-1
RPM Range: Constant Torque
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 11.5/7.0
Bearing: Ball
Lead Length (in.): 15.75
Thermal Protection: REDUNDANT Electronic Control CIRCUITS
Ambient Deg C: 55
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 4.94
Replaces: PSC/X13
Duty: Continuous
Brand: MARS
Harmonized Tariff Code: 8501403040
