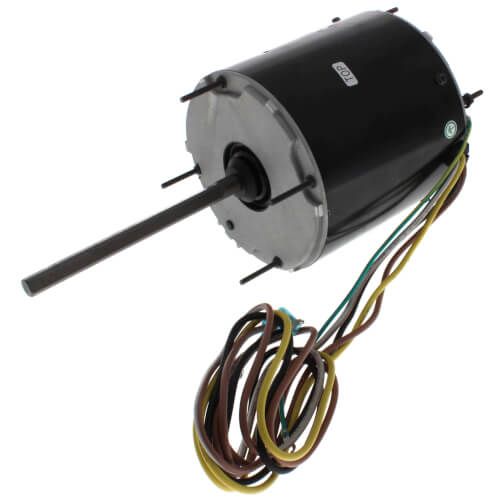

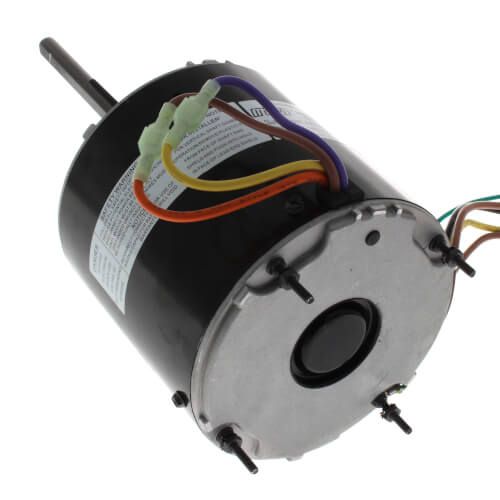

Mars 10730 - Outdoor Condenser Fan Motor (1/2 HP, 1075 RPM, 208-230V)
Brand:
SKU
10730
Motor Type: PSC
Enclosure: TEAO
H.P. (Max.): 1/2
Voltage: 208-230
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 3.5
Mount: All Angle
Bearing: Ball
Shaft Length Inches: 6.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 60
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating:10/370
