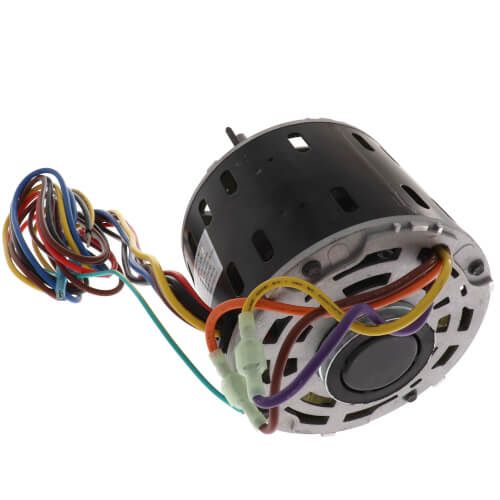

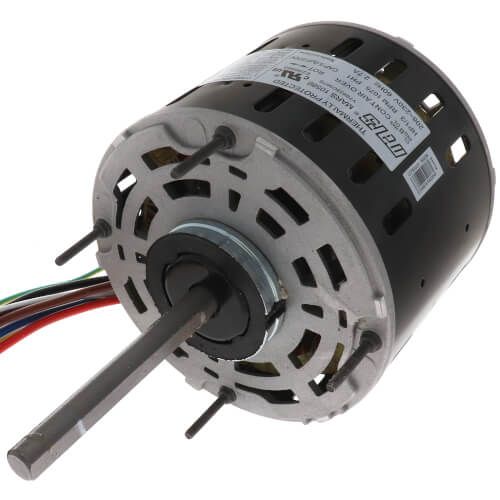

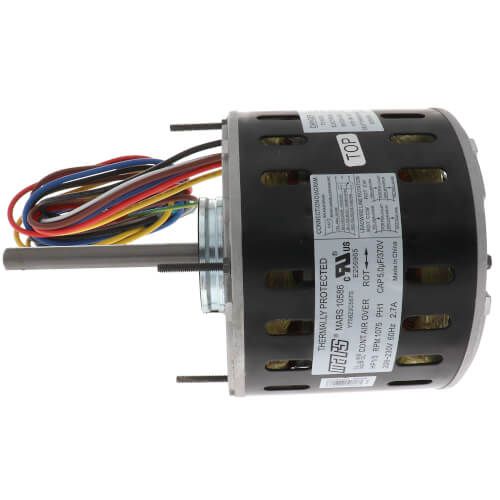

MARS 10586 - 5.5" 3 Speed Direct Drive Furnace Blower Motor (1/3 HP, 208-230V, 1075 RPM)
Brand:
SKU
10586
Motor Type: PSC
Enclosure: OAO
H.P. (Max.): 1/3
Voltage: 208-230
Speeds: 3
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 2.7
Mount: All Angle
Bearing: Sleeve
Shaft Length Inches: 4.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 40
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating: 5/370
