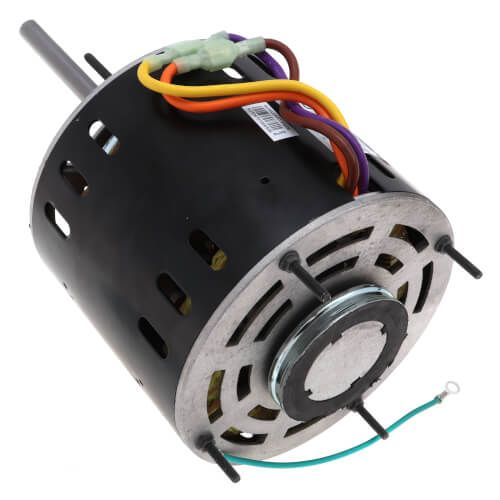

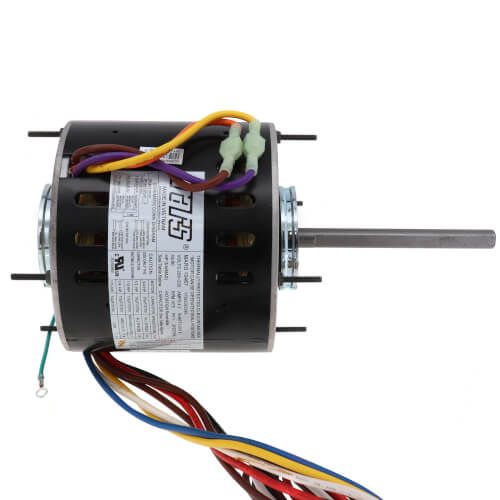

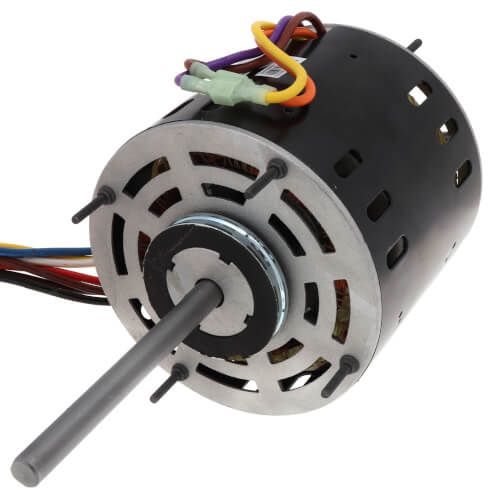

Mars 10467 - Multi-Horsepower Direct Drive Furnace Blower Motor (1/5 to 3/4 HP, 230V, 1075 RPM)
Brand:
SKU
10467
Motor Type: PSC
Enclosure: OAO
H.P. (Max.): 3/4
Voltage: 208-230
Multi-Rated H.P.: 1/5-3/4
Speeds: 4
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 4.2
Mount: All Angle
Bearing: Ball
Shaft Length Inches: 5.6
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 40
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating: 20/10/370
Brand: MARS
Pack Qty: 1
Case Qty: 1
Pallet Qty: 80
Length: 14.80 in.
Width: 6.60 in.
Height: 7.40 in.
Weight: 17.8500 lbs
