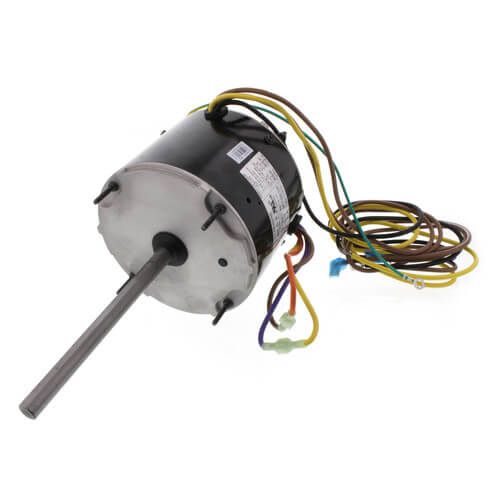

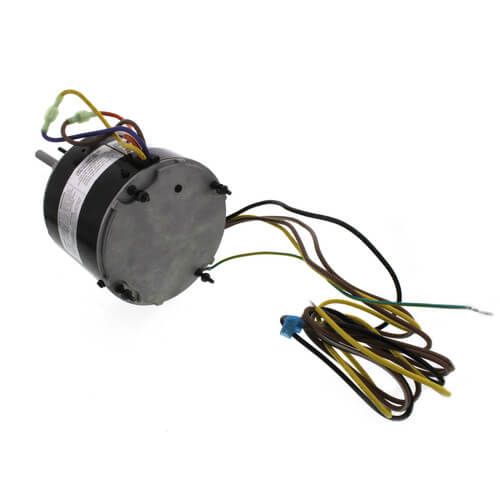

Mars 10458 - 5.5" Multi-Horsepower Condenser Fan Motor (1/3 to 1/6 HP, 208-230V, 1075 RPM)
Brand:
SKU
10458
Motor Type: PSC
Enclosure: TEAO
H.P. (Max.): 1/3
Voltage: 208-230
Multi-Rated H.P.: 1/6-1/3
Speeds: 1
Hz: 60
Rotation: REV
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: CUL
FLA: 2.8
Mount: All Angle
Bearing: Ball
Shaft Length Inches: 6.5
Shaft Dia Inches: 1/2
Thermal Protection: Auto
Ambient Deg C: 60
Ins. Class: Class B
Capacitor Included: No
Capacitor Rating: 7.5/370
Brand: MARS
Harmonized Tariff Code: 8501404040
