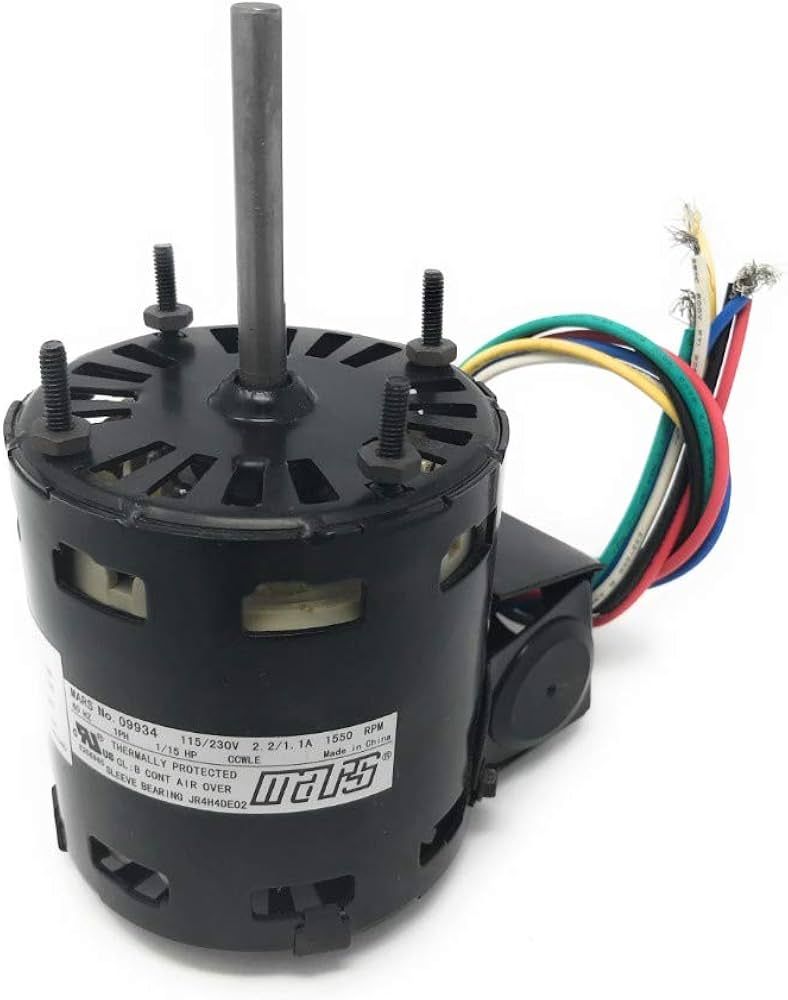

Mars 09934 - 1/15HP 115/230V 3.3 MCQWAY REP
Brand:
SKU
09934
No. of Poles: 4
Motor Type: Shaded Pole
Enclosure: Open
HP (Max.): 1/15
Voltage: 115/230
Mounting: Thru Bolt
Speeds: 1
Hz: 60
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 3.3
Phase: Single
Standards: CSA
FLA: 2.2/1.1
Bearing: Sleeve
Lead Length (in.): 14
Thermal Protection: Auto
Ambient Deg C: 40
NOTE: Voltage Change Ext. Connection Box
Ins. Class: B
Shaft Dia. (in.): 5/16
Capacitor Included: No
Shaft Length (in.): 2.25
Duty: Continuous
Brand: MARS
Weight: 4.9000 lbs
Harmonized Tariff Code: 8501402040
