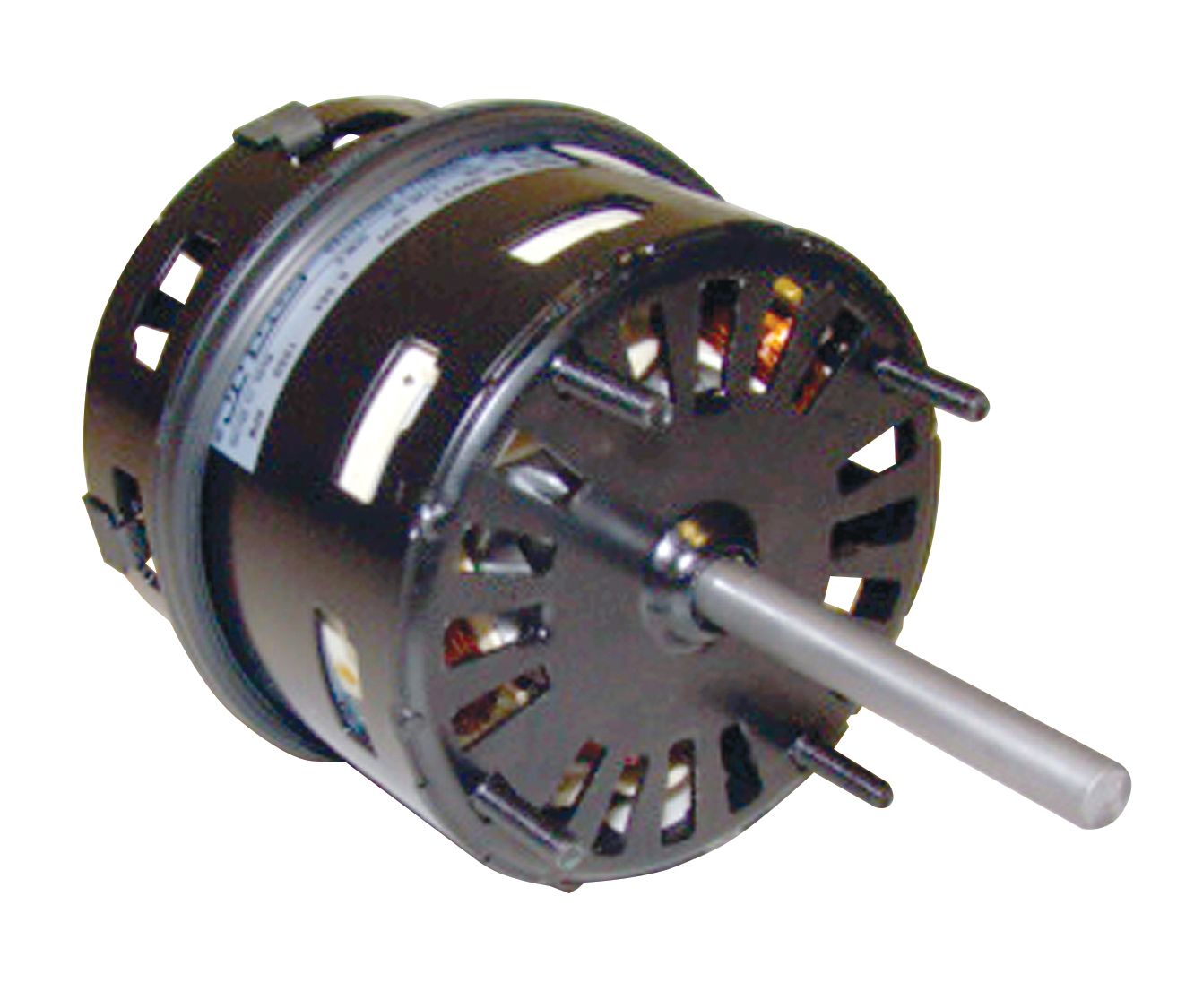

Mars 09933 - 1/20HP 208/230V 3.3 LARKIN REP
Brand:
SKU
09933
No. of Poles: 4
Motor Type: Shaded Pole
Enclosure: Open
HP (Max.): 1/20
Voltage: 208-230
Mounting: Thru Bolt
Speeds: 1
Hz: 60
Rotation: CCW
RPM Range: 1550
NEMA Frame Size: 3.3
Phase: Single
Standards: CSA
FLA: 1.3
Bearing: Sleeve
Lead Length (in.): 15
Thermal Protection: Auto
Ambient Deg C: 40
NOTE: Ripcord 18/2
Ins. Class: B
Shaft Dia. (in.): 5/16
Capacitor Included: No
Shaft Length (in.): 2.25
Duty: Continuous
Brand: MARS
Weight: 3.8500 lbs
Harmonized Tariff Code: 8501106080
