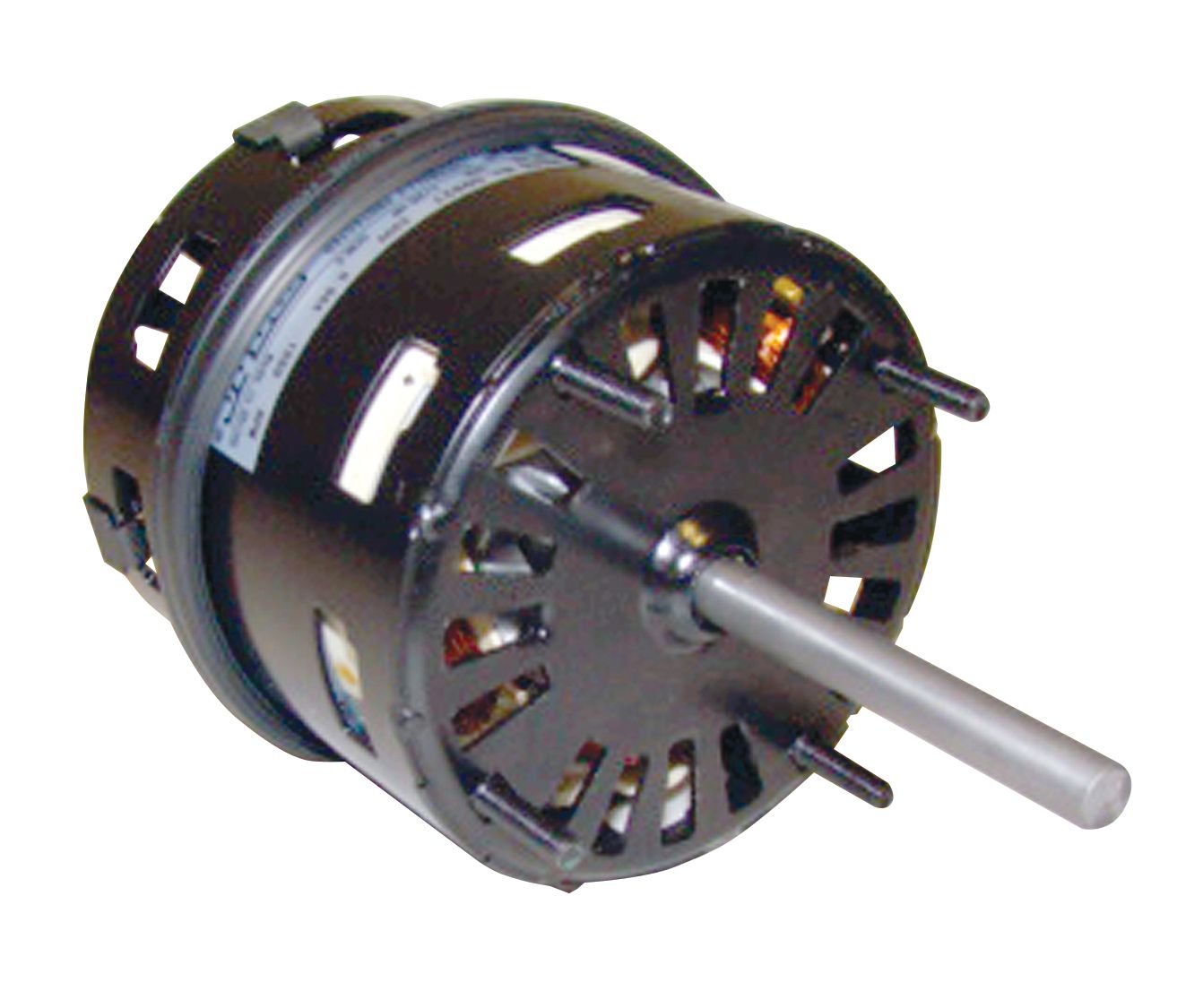

Mars 09931 - 1/15 HP 230V 3.3 DIA BOHN REPL
Brand:
SKU
09931
No. of Poles: 4
Motor Type: Shaded Pole
Enclosure: Open
HP (Max.): 1/15
Voltage: 230
Mounting: Thru Bolt
Speeds: 1
Hz: 60
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 3.3
Phase: Single
Standards: CSA
FLA: 1.1
Bearing: Sleeve
Lead Length (in.): 13
Thermal Protection: Auto
Ambient Deg C: 40
NOTE: Ripcord 18/2
Ins. Class: B
Shaft Dia. (in.): 5/16
Capacitor Included: No
Shaft Length (in.): 3
Duty: Continuous
Brand: MARS
Weight: 4.6500 lbs
Harmonized Tariff Code: 8501402040
