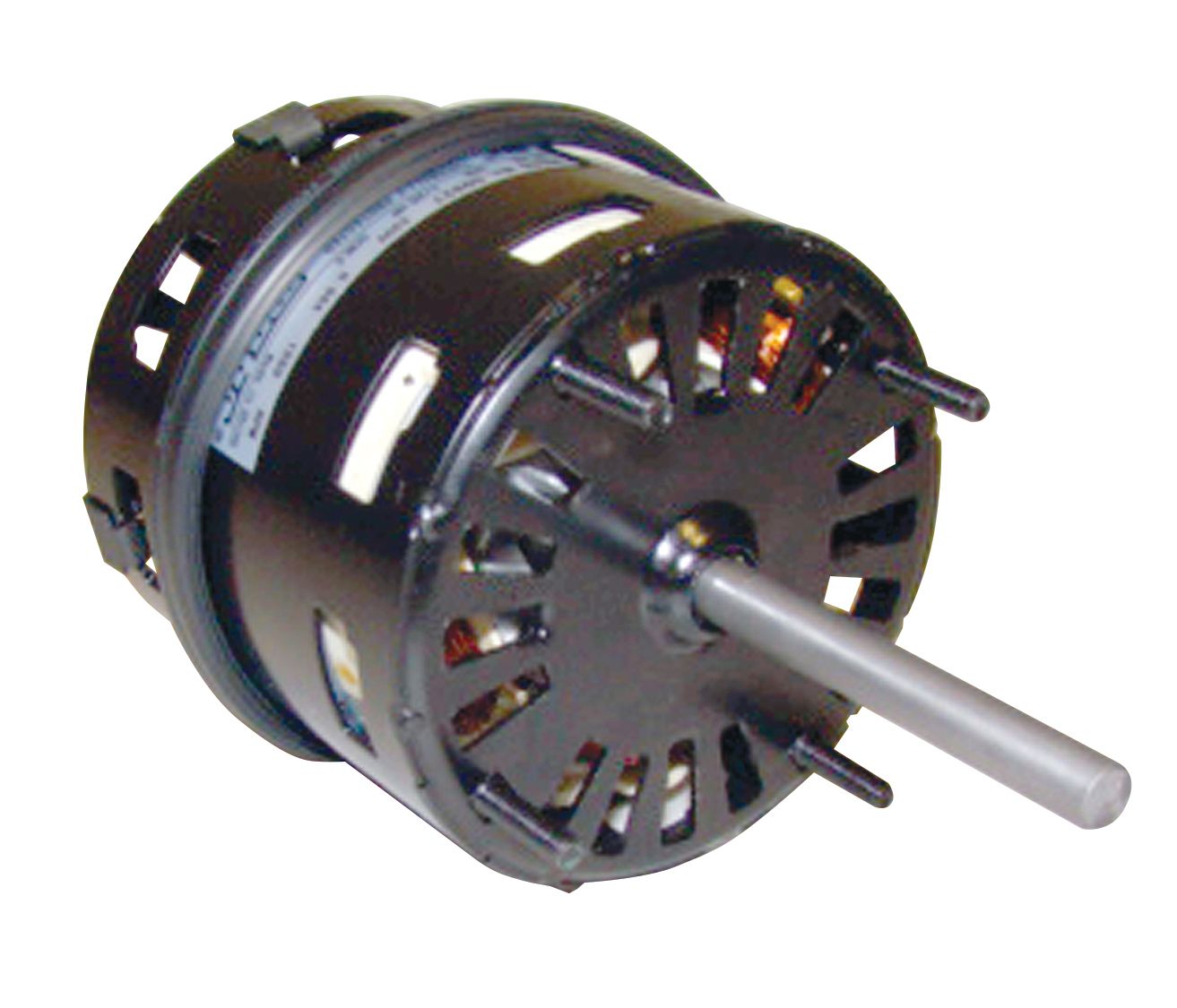

Mars 09927 - 1/20 HP 208/230V 3.3 SUPER FIT
Brand:
SKU
09927
No. of Poles: 4
Motor Type: Shaded Pole
Enclosure: Open
HP (Max.): 1/20
Voltage: 208-230
Mounting: Thru Bolt
Speeds: 1
Hz: 60
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 3.3
Phase: Single
Standards: CSA
FLA: 0.9
Bearing: Sleeve
Lead Length (in.): 12
Thermal Protection: Auto
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 5/16
Capacitor Included: No
Shaft Length (in.): 2.5
Duty: Continuous
Brand: MARS
Weight: 3.6500 lbs
Harmonized Tariff Code: 8501106080
