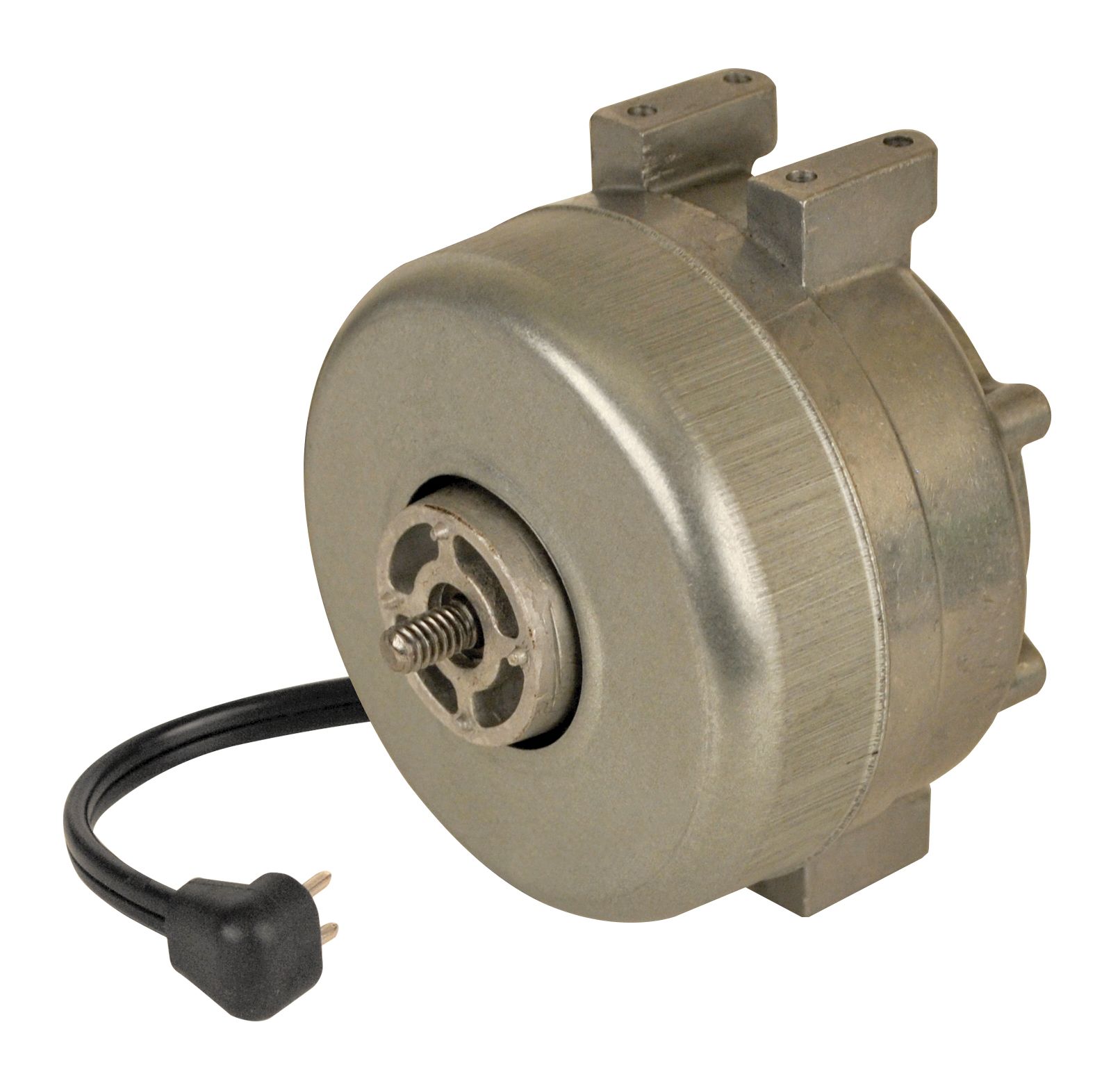

Mars 05814 - 16WATTS 115 CCW 1550 ALUMINUM
Brand:
SKU
05814
Motor Type: Shaded Pole
Enclosure: TEFC
HP (Max.): 16 Watt
Voltage: 115
Mounting: Pad/Foot/5 Hole Rear Mounting
Speeds: 1
Hz: 60/50
Rotation: CCW
RPM Range: 1550
NEMA Frame Size: 51
Phase: Single
Standards: UL/CSA
FLA: 0.95
Bearing: Unit
Lead Length (in.): 24
Thermal Protection: Impedance
Ambient Deg C: 125
NOTE: Aluminum Frame
Ins. Class: B
Shaft Dia. (in.): 1/4
Capacitor Included: No
Shaft Length (in.): 0.49
Capacitor Rating: No
Duty: Continuous
Brand: MARS
Weight: 3.0420 lbs
Harmonized Tariff Code: 8501104020
