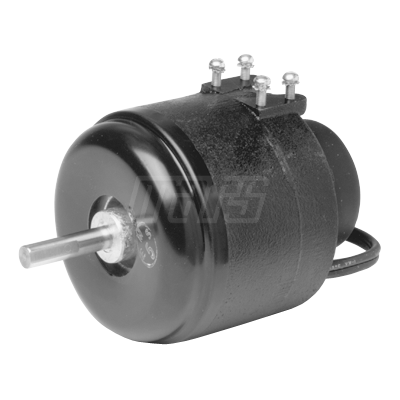

Mars 05521 - 50W 230V CW 1500 RPM CAST IRON
Brand:
SKU
05521
Motor Type: Shaded Pole
Enclosure: Open
HP (Max.): 50 Watt
Voltage: 230
Mounting: Unit Bearing
Speeds: 1
Hz: 60
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 51
Phase: Single
Standards: UL/CUL
FLA: 0.85
Bearing: Unit
Lead Length (in.): 22
Thermal Protection: Yes
Ambient Deg C: 40
Ins. Class: A
Shaft Dia. (in.): 3/8
Capacitor Included: No
Shaft Length (in.): 1.5
Capacitor Rating: No
Duty: Continuous
Brand: MARS
Pack Qty: 1
Case Qty: 6
Pallet Qty: 210
Length: 8.30 in.
Width: 6.80 in.
Height: 4.60 in.
Weight: 6.0000 lbs
Harmonized Tariff Code: 8501104020
