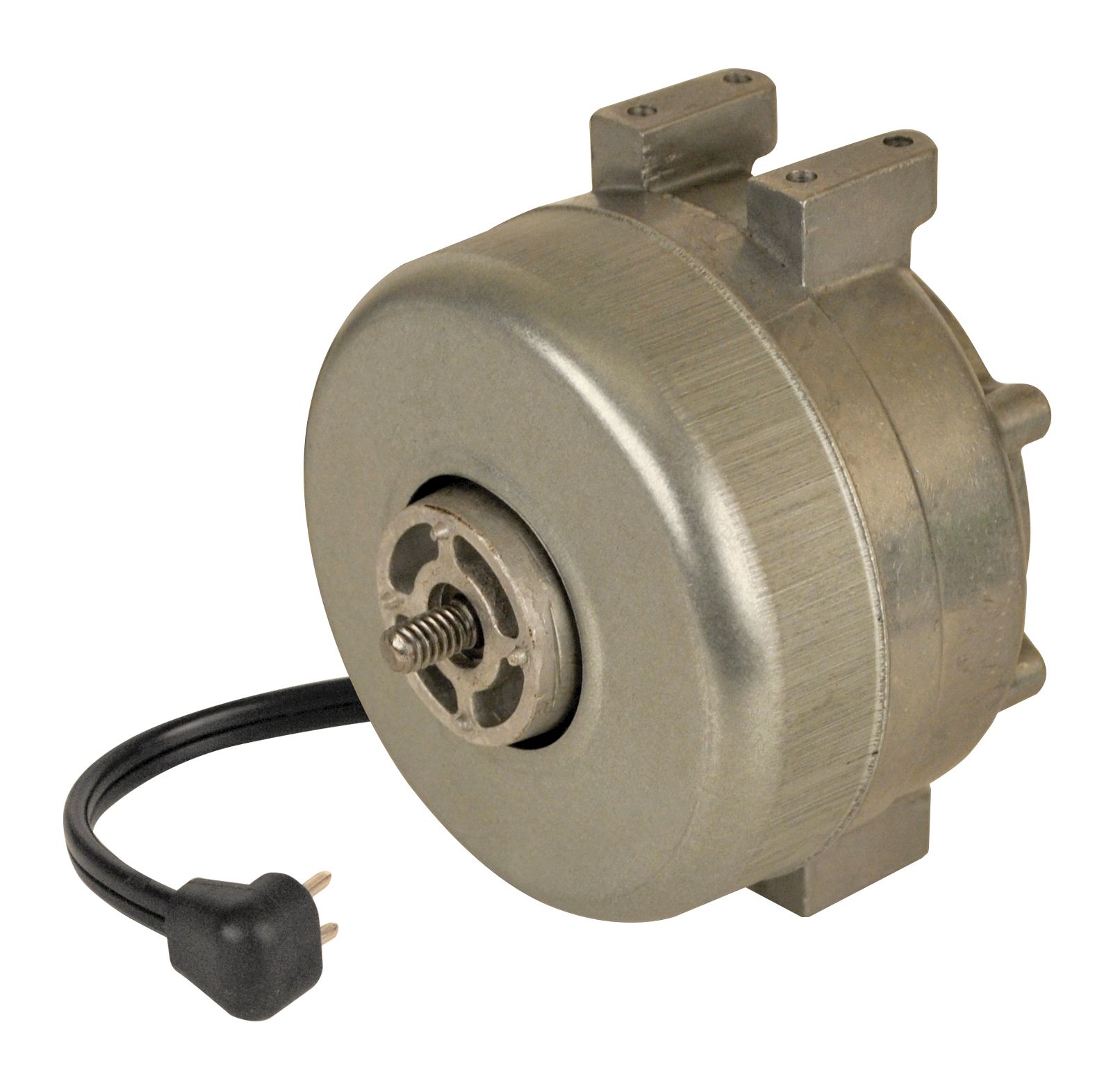

Mars 05414 - 9 WATTS 115 CCW 1550 ALUMINUM
Brand:
SKU
05414
Motor Type: Shaded Pole
Enclosure: TEFC
HP (Max.): 9 Watt
Voltage: 115
Mounting: Pad/Foot/5 Hole Rear Mounting
Speeds: 1
Hz: 60/50
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 51
Phase: Single
Standards: UL/CSA
FLA: 0.62
Bearing: Unit
Lead Length (in.): 24
Thermal Protection: Impedance
Ambient Deg C: 125
NOTE: Aluminum Frame
Ins. Class: B
Shaft Dia. (in.): 1/4
Capacitor Included: No
Shaft Length (in.): 0.49
Capacitor Rating: No
Duty: Continuous
Brand: MARS
Pack Qty: 1
Case Qty: 12
Pallet Qty: 576
Length: 3.70 in.
Width: 3.50 in.
Height: 3.10 in.
Weight: 1.9500 lbs
Harmonized Tariff Code: 8501104020
