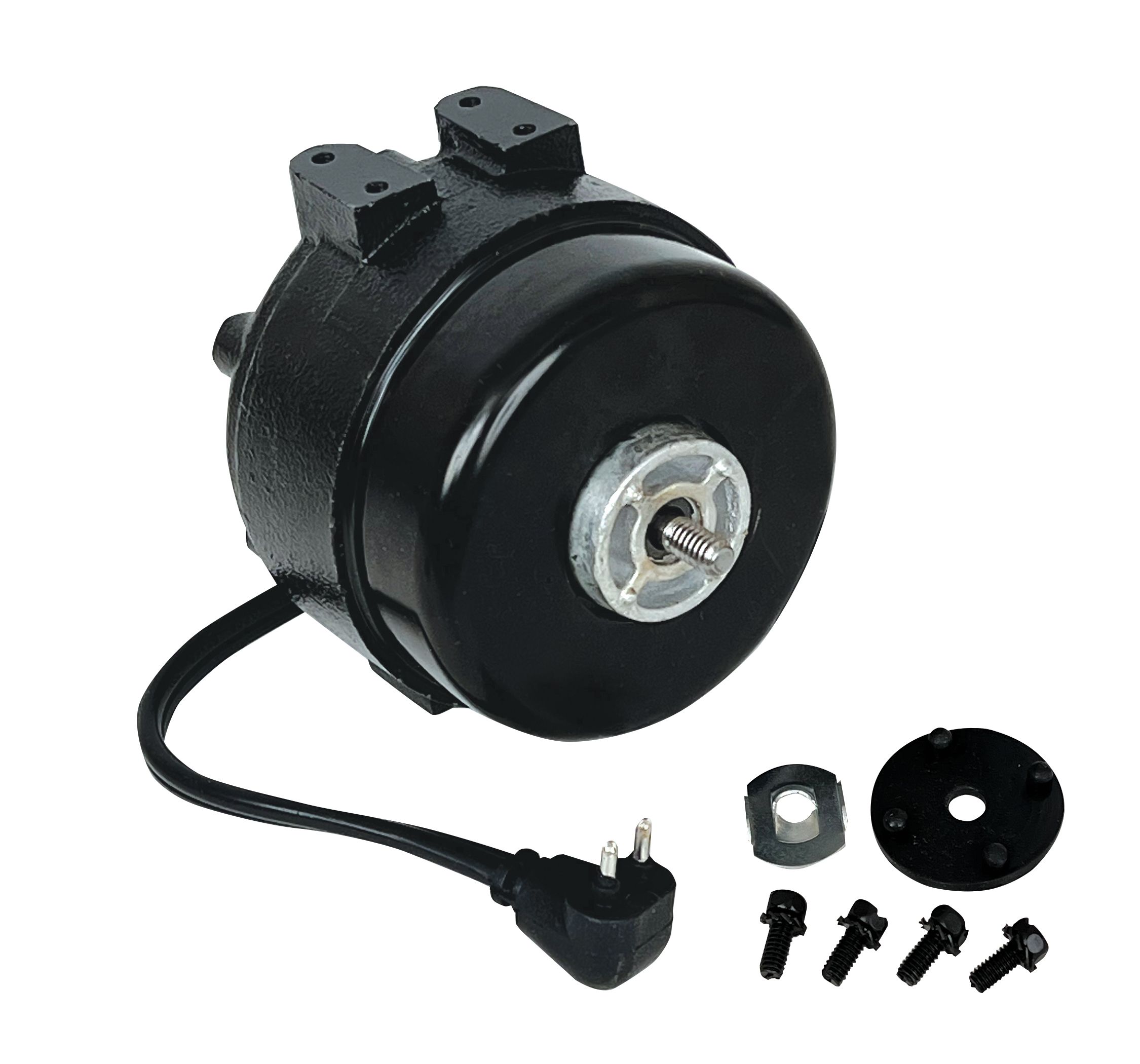

Mars 05222 - 4 WATTS 230 CCW 1550 CAST IRON
Brand:
SKU
05222
Motor Type: Shaded Pole
Enclosure: TEFC
HP (Max.): 4 Watt
Voltage: 230
Mounting: Pad/Foot/5 Hole Rear Mounting
Speeds: 1
Hz: 60/50
Rotation: CCW
RPM Range: 1550
NEMA Frame Size: 51
Phase: Single
Standards: UL/CSA
FLA: 0.19
Bearing: Unit
Lead Length (in.): 24
Thermal Protection: Impedance
Ambient Deg C: 125
NOTE: Cast Iron Frame
Ins. Class: B
Shaft Dia. (in.): 1/4
Capacitor Included: No
Shaft Length (in.): 0.66
Capacitor Rating: No
Duty: Continuous
Brand: MARS
Pack Qty: 1
Length: 4.00 in.
Width: 4.00 in.
Height: 4.00 in.
Weight: 2.3500 lbs
Harmonized Tariff Code: 8501104020
