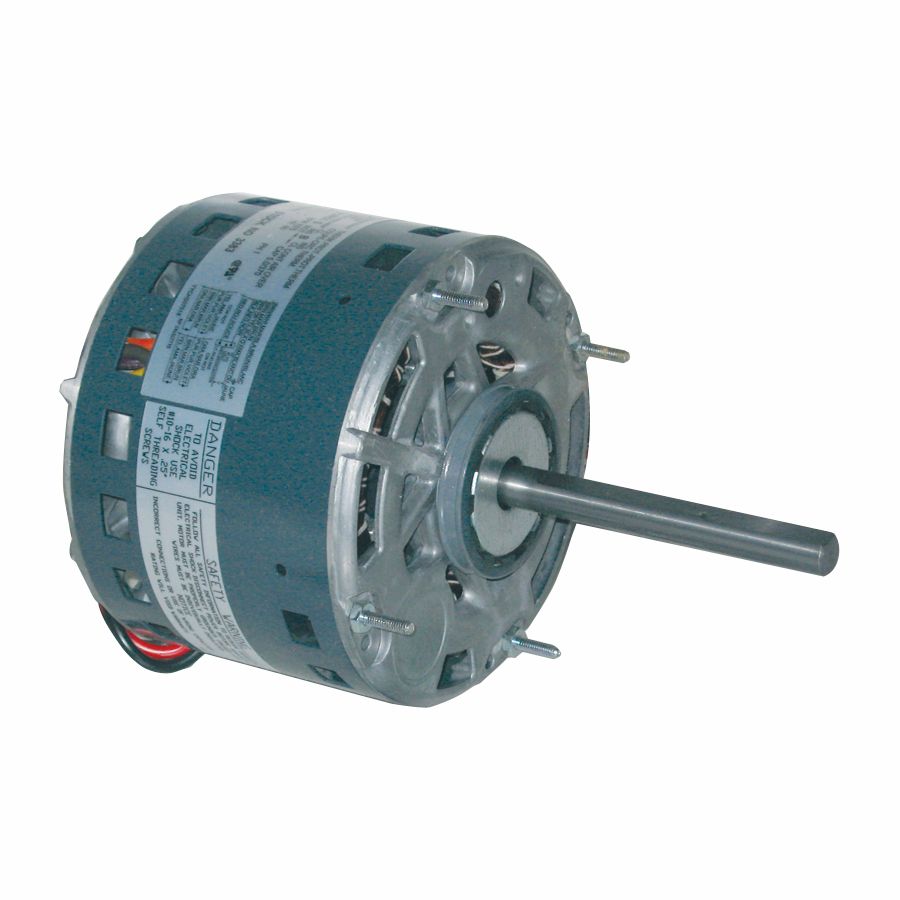

Mars 03990 - 5KCP39PGE414T MOTOR
Brand:
SKU
03990
No. of Poles: 4
Motor Type: PSC
Enclosure: OAO
HP (Max.): 3/4
Voltage: 208-230
Mounting: 8 Shell Mtg Holes
Speeds: 3
Hz: 60
Rotation: CW/CCW
RPM Range: 1075
NEMA Frame Size: 48
Phase: Single
Standards: UR/CSA
FLA: 4.5
Bearing: Ball
Lead Length (in.): 30
Thermal Protection: Yes
Ambient Deg C: 40
Ins. Class: B
Shaft Dia. (in.): 1/2
Capacitor Included: No
Shaft Length (in.): 6.5
Capacitor Rating: 10/370
Service Factor: 1.0
Duty: Continuous
Brand: Regal
Pack Qty: 1
Case Qty: 1
Pallet Qty: 80
Length: 14.00 in.
Width: 6.80 in.
Height: 7.00 in.
Weight: 17.7500 lbs
Harmonized Tariff Code: 8501403040
