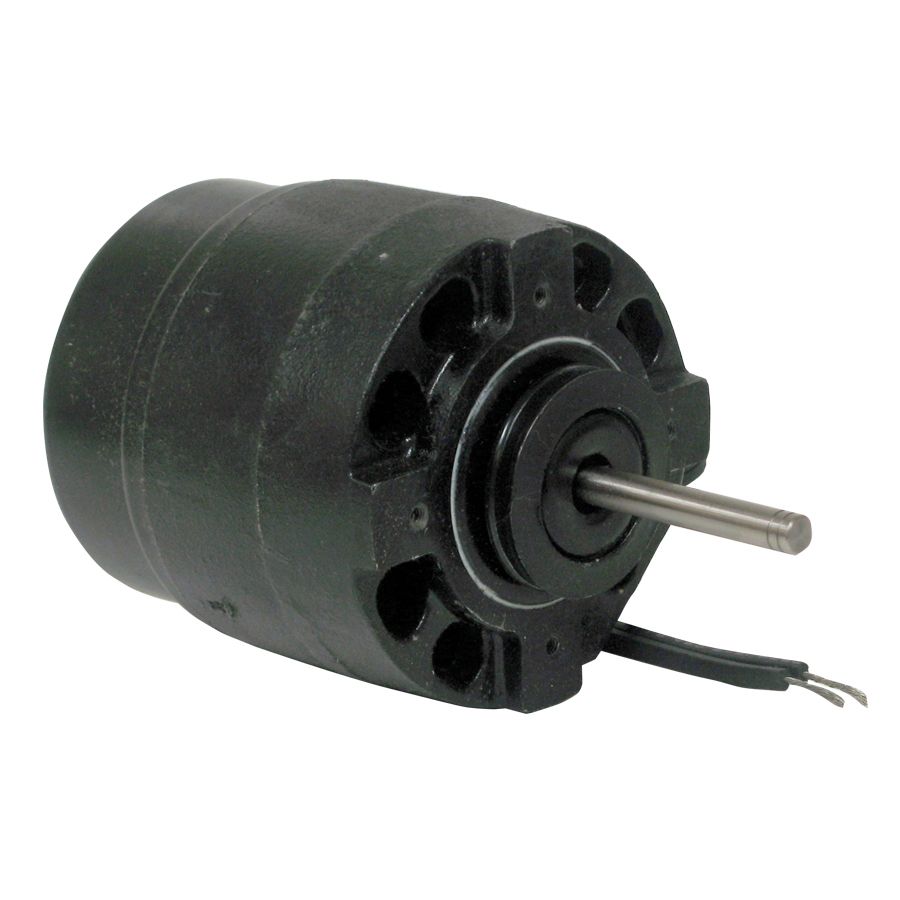

Mars 01336 - 5KSM92KFL2008S
Brand:
SKU
01336
Motor Type: Shaded Pole
Enclosure: OAO
HP (Max.): 1/20
Voltage: 230
Mounting: Resilient base/Strap/End mount
Speeds: 1
Hz: 60
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 11
Phase: Single
Standards: UL/CSA
FLA: 1.1
Bearing: Sleeve
Lead Length (in.): 12
Thermal Protection: Yes
Ambient Deg C: 125
NOTE: Cast Iron Frame
Ins. Class: B
Shaft Dia. (in.): 3/8
Capacitor Included: No
Shaft Length (in.): 2.56
Duty: Continuous
Brand: MARS
Pack Qty: 1
Length: 8.60 in.
Width: 4.50 in.
Height: 4.30 in.
Weight: 6.4000 lbs
Harmonized Tariff Code: 8501106020
