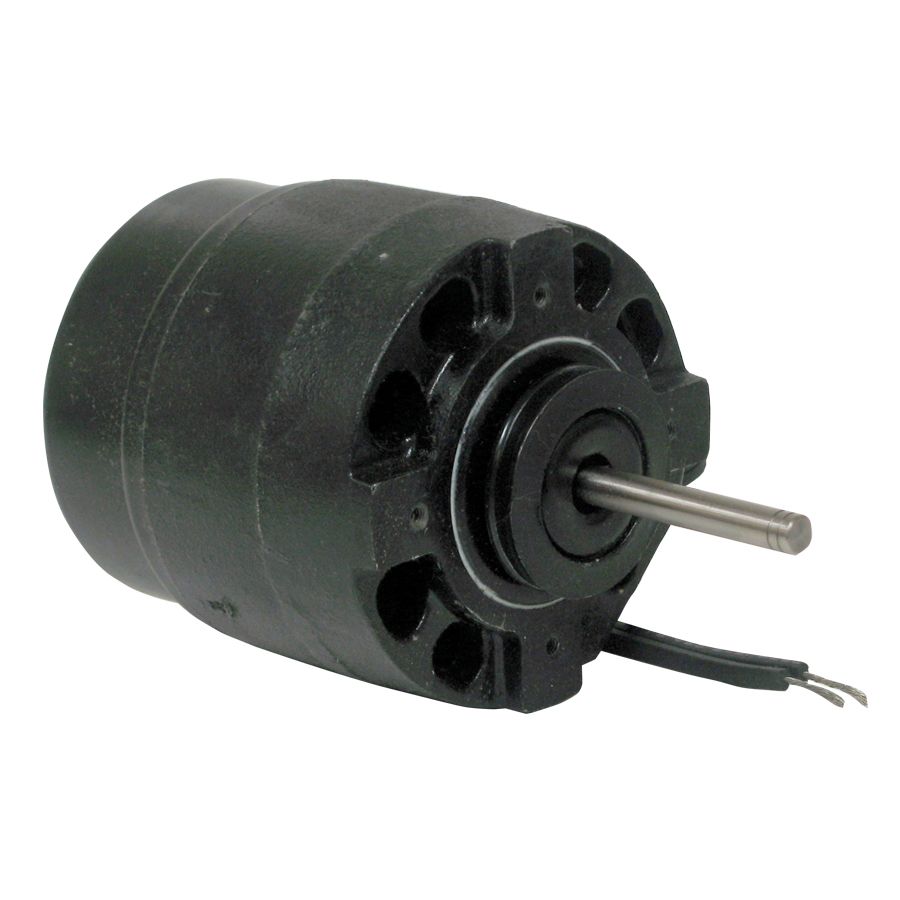

Mars 01232 - 5KSM92KFL3006S MOTOR
Brand:
SKU
01232
Motor Type: Shaded Pole
Enclosure: OAO
HP (Max.): 1/15
Voltage: 208-230
Mounting: Resilient base/Strap/End mount
Speeds: 1
Hz: 60/50
Rotation: CW
RPM Range: 1550
NEMA Frame Size: 11
Phase: Single
Standards: UL/CSA
FLA: 1.2
Bearing: Sleeve
Lead Length (in.): 30
Thermal Protection: Yes
Ambient Deg C: 125
NOTE: Cast Iron Frame
Ins. Class: B
Shaft Dia. (in.): 3/8
Capacitor Included: No
Shaft Length (in.): 2.56
Duty: Continuous
Brand: MARS
Pack Qty: 1
Length: 8.50 in.
Width: 4.80 in.
Height: 4.40 in.
Weight: 6.4000 lbs
Harmonized Tariff Code: 8501106020
