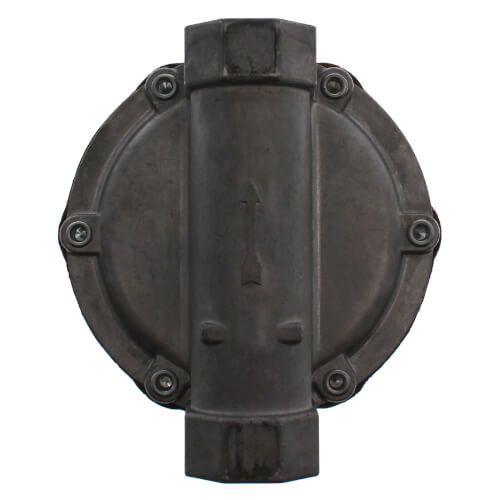

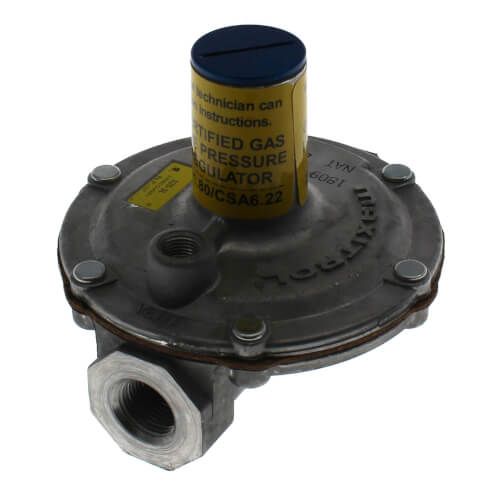

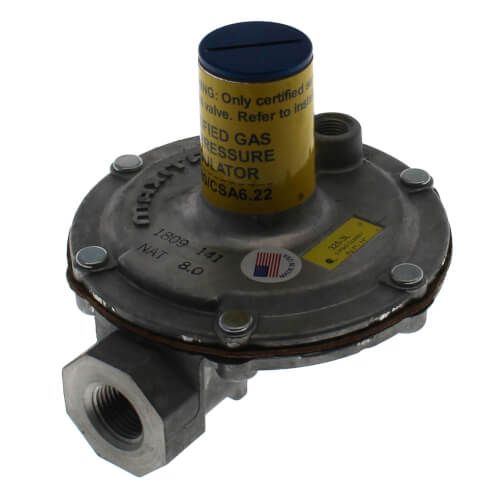

Maxitrol 325-3L-3/8 - 3/8" Line Regulator w/ Vent Limiter (140,000 BTU)
Brand:
SKU
325-3L-3/8
Line Pressure Regulator
Actuation Type Lever
Nominal Size 3/8 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 4.2 Inch
Body Material Aluminum
Temperature Rating -40 to 205 Deg F
Pressure Rating 1 and 2 PSI (Inlet), 65 PSI (Emergency Exposure Limit), 7 and 11 Inch WC (Outlet)
Inclusions/Features Overpressure Protection Device
Application Residential, Commercial, Industrial
Applicable Standard CSA (Canada and US), ANSI Z21.18/CSA 6.3
Gas Type Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture
Vent Pipe Connection 1/8 Inch Threaded
Swing Radius 3 Inch
Height 3.5 Inch
Individual Load Rating 140000 BTU/Hour
Capacity 250000 BTU/Hour
Maxitrol 325-3L-3/8 - 3/8" Line Regulator w/ Vent Limiter (140,000 BTU)
Line Pressure Regulator
Actuation Type Lever
Nominal Size 3/8 Inch
End Connection Female Threaded x Female Threaded
End to End Distance 4.2 Inch
Body Material Aluminum
Temperature Rating -40 to 205 Deg F
Pressure Rating 1 and 2 PSI (Inlet), 65 PSI (Emergency Exposure Limit), 7 and 11 Inch WC (Outlet)
Inclusions/Features Overpressure Protection Device
Application Residential, Commercial, Industrial
Applicable Standard CSA (Canada and US), ANSI Z21.18/CSA 6.3
Gas Type Natural, Mixed Gas, Liquefied Petroleum Gas and LP Gas Air Mixture
Vent Pipe Connection 1/8 Inch Threaded
Swing Radius 3 Inch
Height 3.5 Inch
Individual Load Rating 140000 BTU/Hour
Capacity 250000 BTU/Hour
