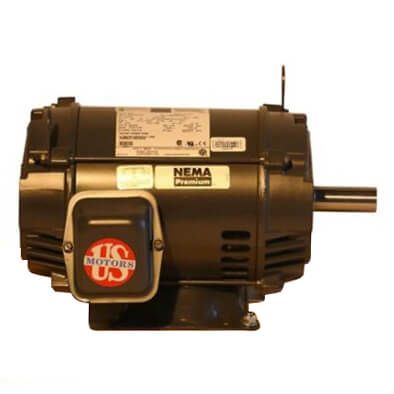

Lennox 72W63 - Nidec 103021-01 Supply Air Blower Motor, 5 HP, 230 Volts, 3 Phase, 1745 RPM
Brand:
SKU
72W63
Brand: Lennox
Catalog Number: 72W63
Model/Part Number: 103021-01
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)
Material Description: Nidec 103021-01 Supply Air Blower Motor, 5 HP, 230 Volts, 3 Phase, 1745 RPM
Product Height: 15.38 IN
Horsepower: 5 HP
Diameter: 8.5 IN
Gross Weight: 81 LB
Amperage (AMPs): 13/13.8A
Bearing Type: Ball
Hertz: 60 hz
Phase: 3 Phase
Shaft Length: 2.75
Country of Origin: USA
Core Product: No
Motor Type: 3 Phase
RPM: 1750 RPM
Motor HP: 5 HP
Number of Speeds: 1 Speed
Frame Size: 184T
Motor Mounting Position: Horizontal
Motor Mounting Type: Rigid
Motor Voltage: 200-230 VAC 3 Ph 60 Hz
Shaft Size: 1-1/8 x 2-3/4 IN
Rotation: Reversible
Bearing Type: Ball
