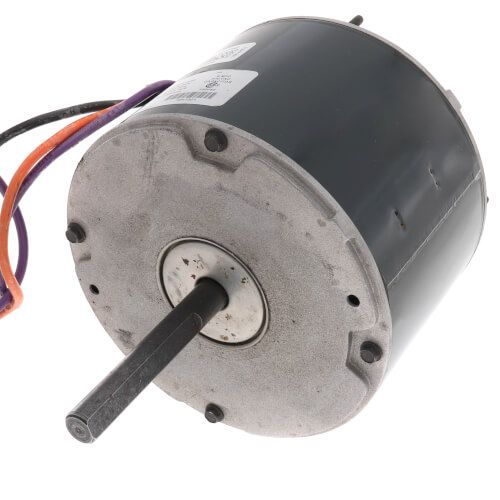

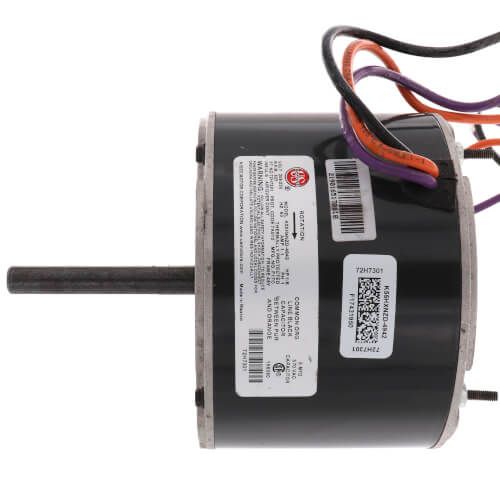

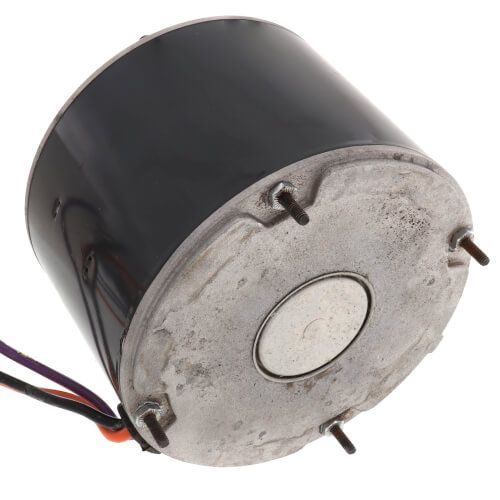

Lennox 72H73 - Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM

$283.95

Material Description: 72H7301, Condenser Fan Motor, 1/6 HP, 208-230/1, 825 RPM
Horsepower: 1/6 HP
Gross Weight: 11 LB
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 1.23
Country of Origin: USA
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/6 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Stud
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
