FIX IT FAST, WITH OUR PARTS!

Brand: Lennox

Catalog Number: 68J24

Model/Part Number: 68J2401

Minimum Order Quantity: 0.0

Base Unit of Measure: Unit(S)

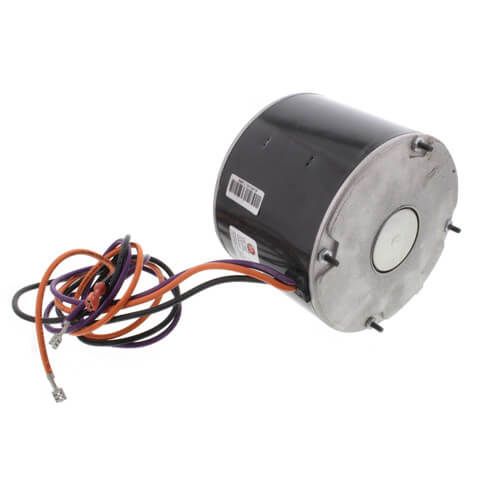

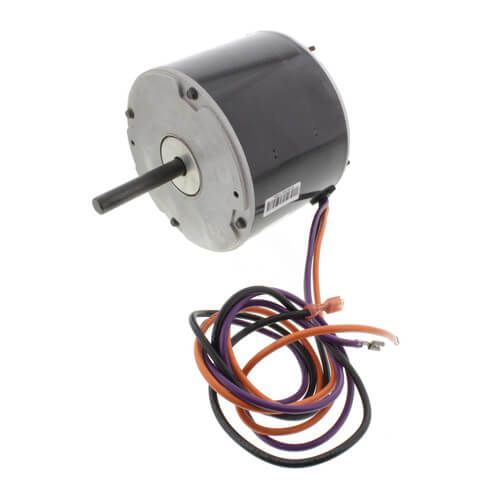

Material Description: Nidec 68J2401, Condenser Fan Motor, 1 Speed, 1/3 HP, 208-230/1, 1075 RPM

Horsepower: 1/3 HP

Gross Weight: 14.95 LB

Amperage (AMPs): 2.1A

Bearing Type: Sleeve

Hertz: 60 hz

Phase: 1 Phase

Shaft Length: 2.75

Country of Origin: Mexico

Core Product: No

Speed: 1

Voltage Phase: 208/230-1

NEMA Frame Size: 48

Rotation: CCW from lead end

Shaft Diameter: 0.5

Motor Type: PSC

Motor Type: PSC

RPM: 1075 RPM

Motor HP: 1/3 HP

Number of Speeds: 1 Speed

Frame Size: 48

Motor Voltage: 208-230 VAC 1 Ph 60 Hz

Rotation: CCWLE

Bearing Type: Sleeve
