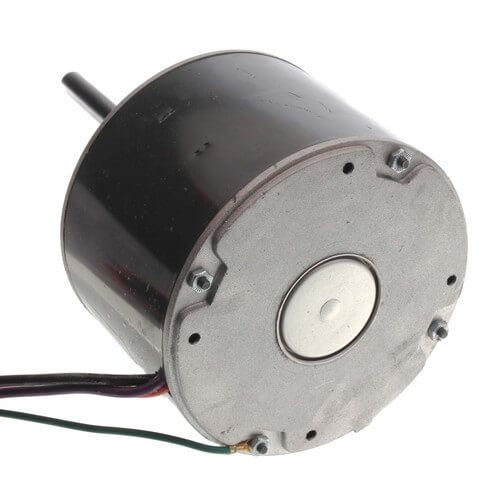

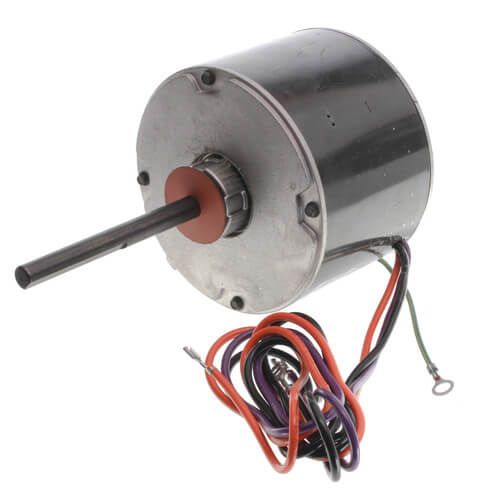

Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM

Brand:
SKU
65G60

Material Description:Nidec Motor 65G6001 Condenser Fan Motor, 1 Speed, 1/6 HP, 208-230 Volts, 825 RPM
Product Height: 9.5 IN
Horsepower: 1/6 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 11.1 LB
Amperage (AMPs): 1.1A
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 2.5
Country of Origin: Mexico
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/6 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.5 IN
Capacitor Value: 5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve

Lennox 65G60 - ( 65G6001 ) Condenser Fan Motor, 1/6 HP, 208/230V-1Ph, 825 RPM

Brand:
AvailabilityIn stock (106)
SKU
65G60

Material Description:Nidec Motor 65G6001 Condenser Fan Motor, 1 Speed, 1/6 HP, 208-230 Volts, 825 RPM
Product Height: 9.5 IN
Horsepower: 1/6 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 11.1 LB
Amperage (AMPs): 1.1A
Bearing Type: Sleeve
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 2.5
Country of Origin: Mexico
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/6 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.5 IN
Capacitor Value: 5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
$251.27
