60L22

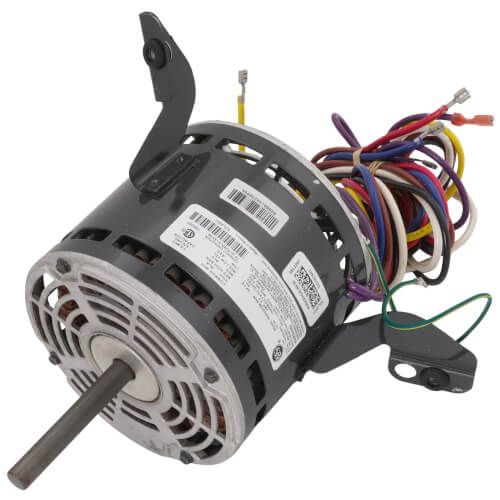

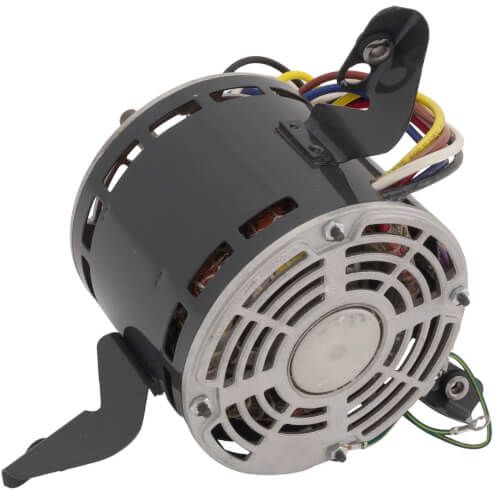

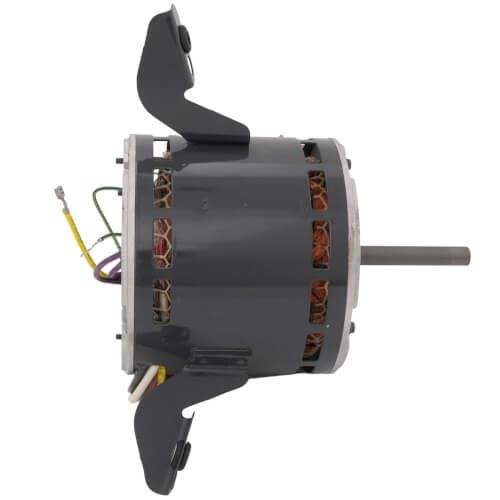

Lennox 60L22 - Blower Motor, 1/2 HP PSC Blower Motor, 1075 RPM, 5-Speed, 115 VAC 1 Ph 60 Hz

$260.09

Base Unit of Measure: Unit(S)
Material Description: US Motors K055HGB8639011J Fan Motor, 1/2HP, 5 Speed, 115 Volts, 60 Hz, 1075 RPM, 8.0-8.6 Amps
Product Height: 8.312 IN
Horsepower: 1/2 HP
Diameter: 5.625 IN
RPM Range: 1075
Gross Weight: 17.8 LB
Amperage (AMPs): 8/8.6A
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/2 HP
Number of Speeds: 5 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Torsion Flex Bracket
Motor Voltage: 115 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 7.5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Motor Type: PSC
Speed: 5
More Information
Package Quantity 1 Item
UPC 66255119778
