Brand: Lennox

Catalog Number: 51H75

Model/Part Number: 51H7501

Minimum Order Quantity: 0.0

Base Unit of Measure: Unit(S)

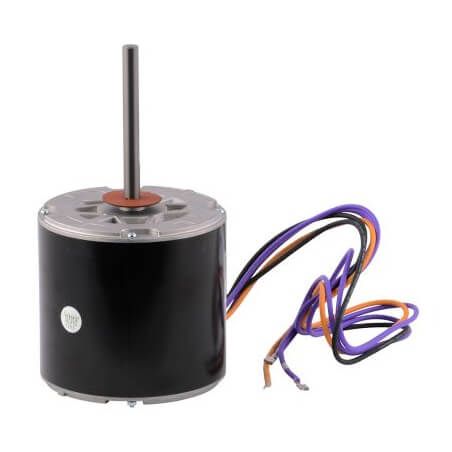

Material Description: Nidec Motor 51H7501 Condenser Fan Motor, 1/4 HP, 460 Volts, 1 Phase, 825 RPM

Product Height: 10.21 IN

Horsepower: 1/4 HP

Type: PSC

Diameter: 5.6 IN

Gross Weight: 17.4 LB

Amperage (AMPs): 1.1A

Bearing Type: Ball

Hertz: 60 hz

Phase: 1 Phase

Shaft Length: 4.9

Core Product: No

Speed: 1

Voltage Phase: 460-1

NEMA Frame Size: 48

Rotation: CCW from lead end

Shaft Diameter: 0.5

Motor Type: PSC

Motor Type: PSC

RPM: 825 RPM

Motor HP: 1/4 HP

Number of Speeds: 1 Speed

Frame Size: 48

Motor Voltage: 460 VAC 1 Ph 60 HZ

Capacitor Value: 7 MFD 370 VAC

Rotation: CCWLE

Bearing Type: Ball
