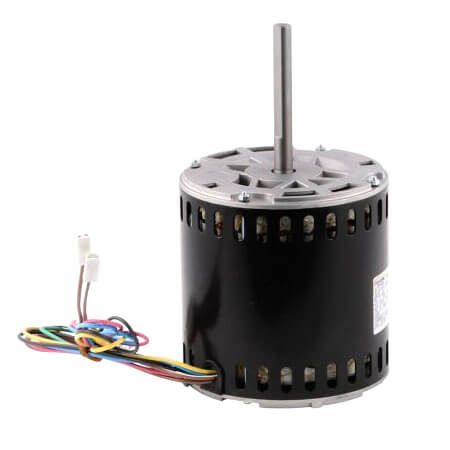

Lennox 41W54 ( 104849-06 ) - Blower Motor, 1/2 HP, 240V-1Ph, 825 RPM
Brand:
SKU
41W54
Brand: Lennox
Base Unit of Measure: Unit(S)
Material Description: Lennox 104849-06 Blower Motor, 1/2HP, 240 Volts, 50-60 Hz, 825 RPM, 3.9 Amps
Horsepower: 1/2 HP
Diameter: 5.7 IN
RPM Range: 825
Gross Weight: 21 LB
Amperage (AMPs): 3.9A
Hertz: 50/60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 825 RPM
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 50/60 Hz
Shaft Size: 1/2 x 4 IN
Capacitor Value: 20 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
Motor Type: UF
Speed: 3
