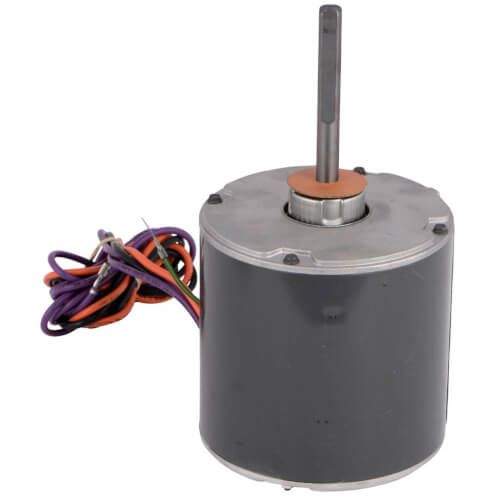

Lennox 41C83 - ( 41C8301 ) Condenser Fan Motor, 1/2 HP, 208/230V-1Ph, 1075 RPM
Brand:
SKU
41C83
Brand: Lennox
Catalog Number: 41C83
Model/Part Number: 41C8301
Minimum Order Quantity: 0.0
Base Unit of Measure: Unit(S)
Material Description: 41C8301, Condenser Fan Motor, 1/2 HP, 208-230/1, 1075 RPM
Horsepower: 1/2 HP
Gross Weight: 19.9 LB
Bearing Type: Ball
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 4.6875
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/2 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Belly Band
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 4.1 IN
Capacitor Value: 15 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
