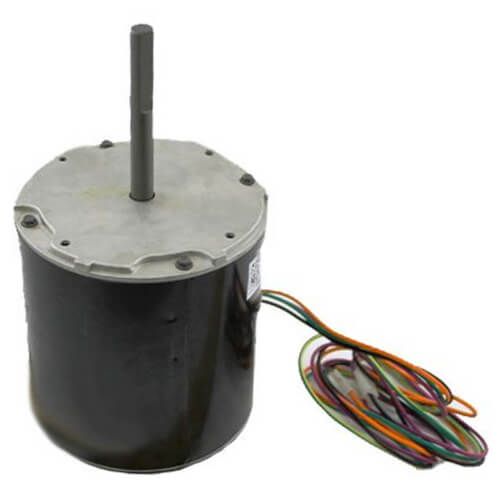

Lennox 38W84 ( 100483-20 ) - Condenser Fan Motor, 1/12 HP, 208/230V-1Ph, 825 RPM, 100483-20
Brand:
SKU
38W84
Material Description: Interlink 100483-20 Condenser Fan Motor, 1/12 HP, 208-230 Volts, 1 Phase, 825 RPM
Product Height: 10 IN
Horsepower: 1/12 HP
Type: PSC
Diameter: 5.6 IN
Gross Weight: 12.25 LB
Amperage (AMPs): 0.6A
Bearing Type: Ball
Hertz: 60 hz
Phase: 1 Phase
Shaft Length: 3.92
Core Product: No
Speed: 1
Voltage Phase: 208/230-1
NEMA Frame Size: 48
Rotation: CCW from lead end
Shaft Diameter: 0.5
Motor Type: PSC
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/12 HP
Number of Speeds: 1 Speed
Frame Size: 48
Motor Mounting Position: Vertical
Motor Mounting Type: Stud
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3.9 IN
Capacitor Value: 4 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Ball
