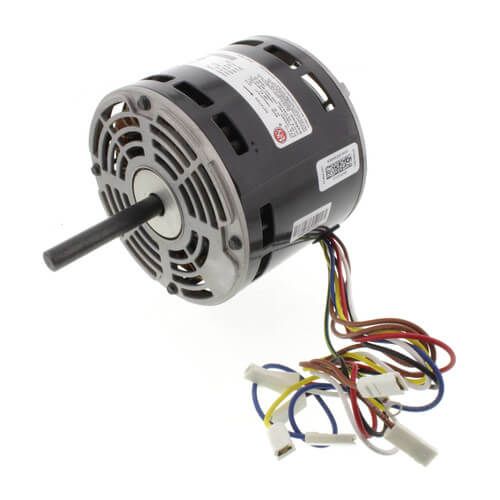

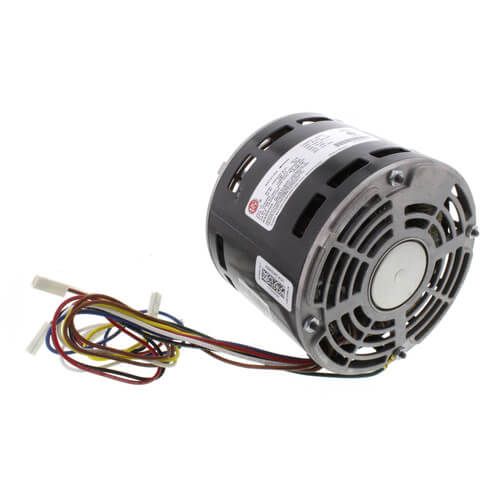

Lennox 35K59 - ( 47464-001 ) Blower Motor, 1/3 HP, 115 Volts, 4 Speed, 1075 RPM

Statistic Icon
Brand:
SKU
35K59

Horsepower: 1/3 HP
Diameter: 5.625 IN
RPM Range: 1075
Gross Weight: 13 LB
Amperage (AMPs): 6.4A
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3 HP
Number of Speeds: 4 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 115 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 7.5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Rotation: CCWLE
Speed: 4







main product photo

Lennox 35K59 - ( 47464-001 ) Blower Motor, 1/3 HP, 115 Volts, 4 Speed, 1075 RPM

Brand:
AvailabilityIn stock (1)
SKU
35K59

Horsepower: 1/3 HP
Diameter: 5.625 IN
RPM Range: 1075
Gross Weight: 13 LB
Amperage (AMPs): 6.4A
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1075 RPM
Motor HP: 1/3 HP
Number of Speeds: 4 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 115 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 7.5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Rotation: CCWLE
Speed: 4







Statistic Icon
- +
$365.39
