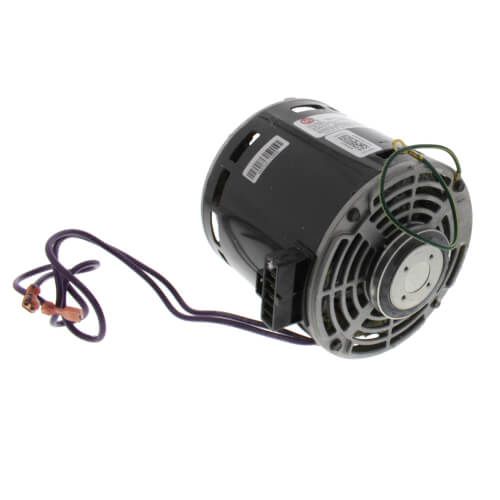

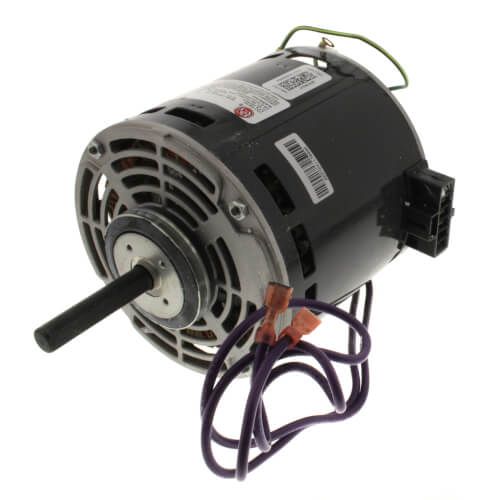

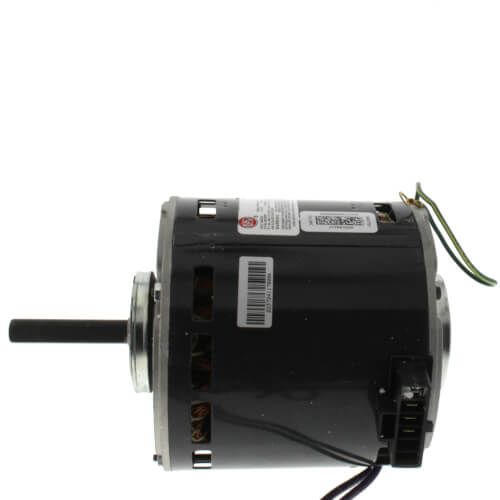

Lennox 34K77 - Blower Motor, 1/3 HP, 208/230V-1Ph, 3 Speed, 825 RPM
Brand:
SKU
34K77
Brand: Lennox
Base Unit of Measure: Unit(S)
Material Description: Lennox 34K7701 Fan Motor, 1/3H, 3 Speed, 208-230 Volts, 60 Hz, 825 RPM, 2-2.4 Amps
Horsepower: 1/3 HP
Diameter: 5.63 IN
RPM Range: 825
Gross Weight: 18.3 LB
Amperage (AMPs): 2/2.4A
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 825 RPM
Motor HP: 1/3 HP
Number of Speeds: 3 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Hub Rings
Motor Voltage: 208-230 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 2.5 IN
Capacitor Value: 20 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Motor Type: PSC
Rotation: CCW/OSE
Speed: 3
