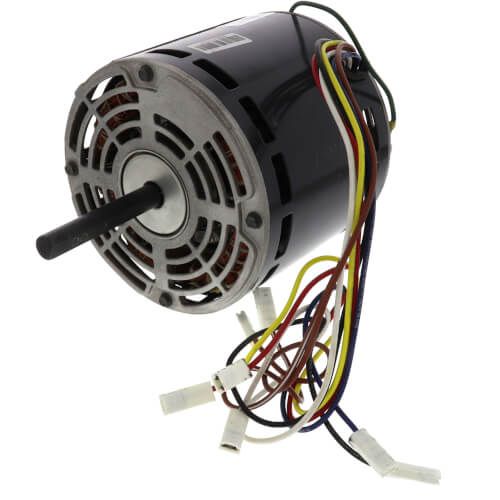

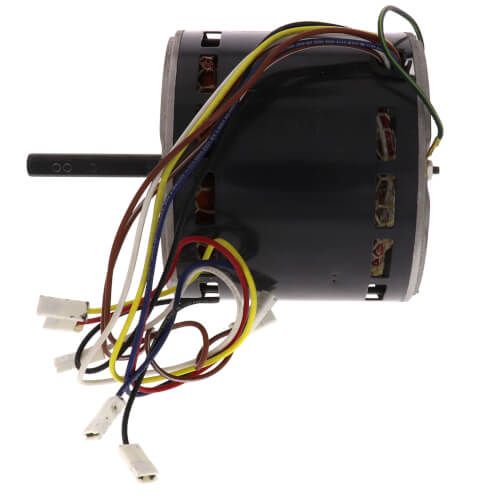

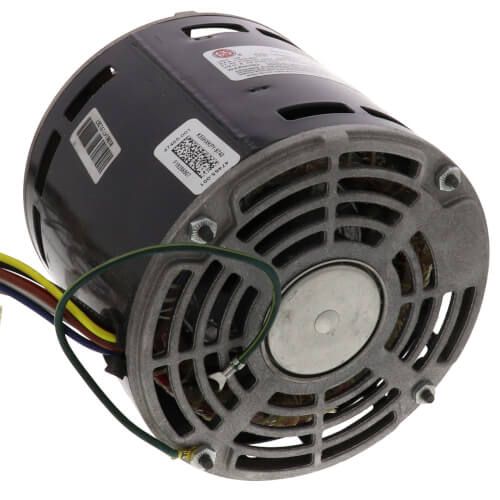

Lennox 28M88 ( 47465-001 ) - Blower Motor, 1/2 HP, 120V, 4 Speed, 1100 RPM, Emerson 47465-001
Brand:
SKU
28M88
Brand: Lennox
Material Description: Emerson 47465-001 Motor, 1/2HP, 4 Speed, 120 Volts, 60 Hz, 1100 RPM, 6.5 Amps
Horsepower: 1/2 HP
Diameter: 5.625 IN
RPM Range: 1100
Gross Weight: 14.5 LB
Amperage (AMPs): 6.5A
Hertz: 60 hz
Phase: 1 Phase
Core Product: No
Motor Type: PSC
RPM: 1100 RPM
Motor HP: 1/2 HP
Number of Speeds: 4 Speed
Frame Size: 48
Motor Mounting Position: Horizontal
Motor Mounting Type: Belly Band
Motor Voltage: 120 VAC 1 Ph 60 Hz
Shaft Size: 1/2 x 3 IN
Capacitor Value: 7.5 MFD 370 VAC
Rotation: CCWLE
Bearing Type: Sleeve
Rotation: CCWLE
Speed: 4
